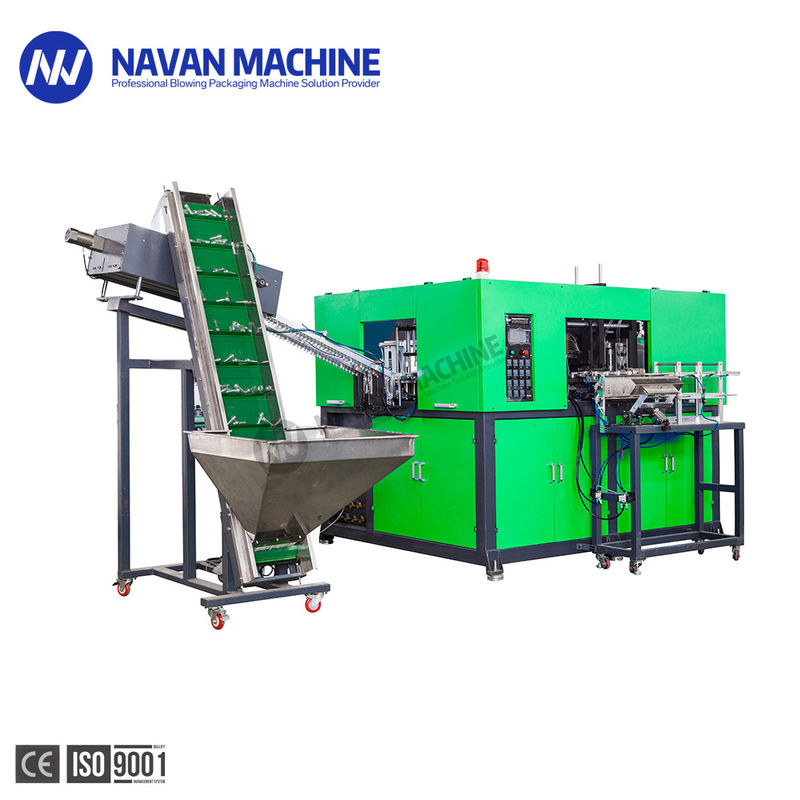

2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine
  • 2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine
  • 2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine
2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine

2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NB-2000
Product Details
Max Container Volume:
2Itr
Clamping Force:
18000kg
Clamping Stroke:
125mm
Stretching Stroke:
450mm
Cavity:
2
Output:
1800-2200BPH@500ml
Main Machine Size:
1950 X1850x2100mm
Total Power:
26kw
High Light:

2 Cavity Bottle Blowing Machine

,

Automatic Bottle Blowing Machine

,

2Itr plastic jar making machine

Product Description

2 Cavity Automatic PET Blowing Machine Plastic bottles Jars Making Machine

Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.



Product parameters:

Model NB-2000
Molding Clamping Force kg 18000
  Clamping Stroke mm 125
  Stretching strok mm 450
  Bottom Stroke mm 40/70
  Cavity Spacing mm 120
  Number of Cavity Cavities 2
  Carriage Unit pcs 66
Theoretical Output bph 1800-2200
Electrical System Total Power kw 26
  Heating Power kw 16x1.5KW=24
  Number of Lamp Layers Layers 8
Air System Operating Pressure kg/cm² 7-9
  Low Pressure Air Consumpt Itr/min 1600
  Blowing Pressure kg/cm² 20-30
  High Pressure Air Consumpt Itr/min 1600
Chiller Operating Pressure kg/cm² 2-4
  Temperature Range ℃ 10-12
  Consumption kcal/hr 2000
  Flow Rate Itr/min 130
Main Machine Main machine dimensions mm(L*W*H) 1950 x1850x2100
  Main Machine Weight kg 1950
Preform Loader Preform Loader Dimensions mm(L*W*H) 2150x1450x2450
  Preform Loader Weight kg 450



Details Images:

2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine 0
New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine 1
New Heating System of 2 cavity automatic PET blowing machine
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine 2
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine 3
Servo Technology Innovation On Clamping System & Stretching.
* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
2 Cavity Automatic PET Blowing Machine Plastic Bottles Jars Making Machine 4
Intelligent Human-Machine Interface
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
