Bottle Blowing Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | NB-100 |

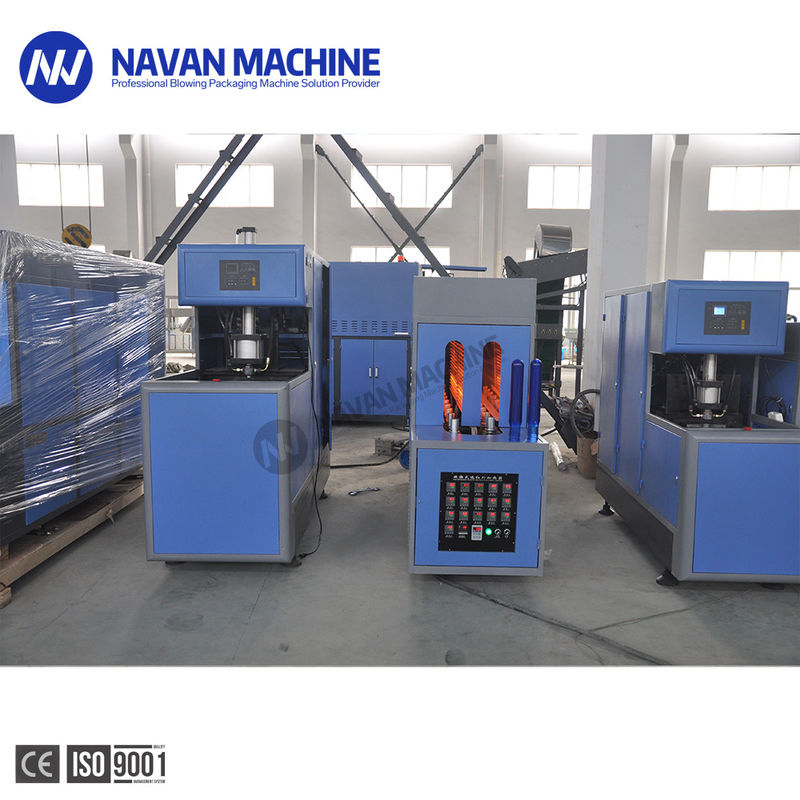

Semi Automatic 5 Gallon PET Bottle Blow Molding / Moulding Machine
Factory Price NAVAN Semi Automatic Manual 5 Gallon PET Bottle Blow Molding / Moulding Machine
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-25L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Product parameters:
| Model No. | Unit | NB-100 |
| Theoretical output | Pcs/hr | 80-150 |
| Container volume | L | 10-25 |
| Perform inner diameter | mm | 45-65 |
| Max. bottle diameter | mm | 300 |
| Max. bottle height | mm | 520 |
| Cavity | Pc | 1 |
| Main machine size | mm | 2180 x740x1900 |
| Machine weight | T | 1.25 |
| Feeding machine dimension | mm | 2650 x720x1950 |
| Feeding machine weight | T |
0.6 |
| Max. heating power | KW | 38 |
| Installation power | KW | 39 |
Details Images:
Blower.
● Unique heating system, accurate temperature control and easy adjustment.
● Unique air storage unit.
● The cooling system achieves the desired cooling effect.
● Each action is driven by a cylinder instead of an oil pump, without contamination.
New Heating System.
● The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed and increases the output.
● Compact design saves space, reduces investment costs and increases competitiveness.
● Advanced PLC control system, light and simple control panel.
Preform heater temperture control.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
Electrical parts.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
