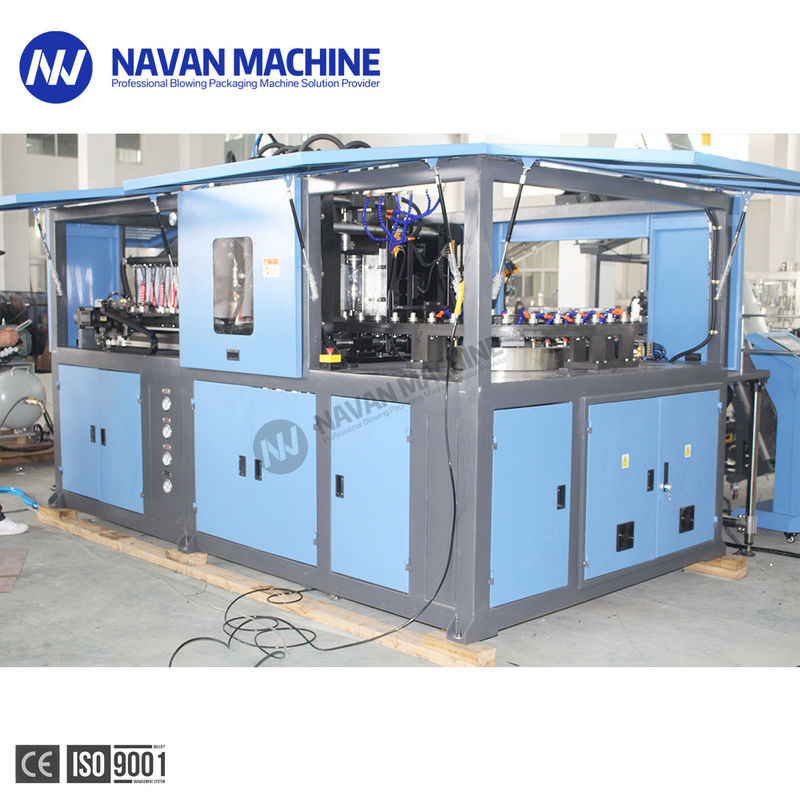

Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine
  • Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine
  • Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine
Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine

Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NB-6000
Product Details
Max Container Volume:
2Itr
Perform Inner Diameter:
50mm
Max. Bottle Diameter:
110mm
Max Bottle Height:
320mm
Cavity:
4
Output:
5500-7500BPH@500ml
Main Machine Size:
3700 X2150x2150mm
Installation Power:
75kw
High Light:

6 Cavities automatic pet bottle blowing machine

,

0-2L automatic pet bottle blowing machine

,

2Itr pet bottle automatic machine

Product Description

Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.



Product Paramenters:

Model No.
Unit
NB-4000
NB-6000
Theoretical output
Pcs/hr
3000-4500
5500-7500
Container volume
L
0.2-2
0.2-2
Perform inner diameter
mm
50
50
Max. bottle diameter
mm
110
110
Max. bottle height
mm
320
320
Cavity
Pc
4
6
Blowing machine size
M
3000 x2130x2150
3700 x2150x2150
Blowing Machine weight
T
4
5.5
Preform loader dimension
M
2350x1350x2650
2350x1350x2650
Preform loader weight
T
0.55
0.55
Max. heating power
KW
48
72
Installation power
KW
50
75



Detailed Product:

Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine 0
New Auto Preform Unscrambler System for 6 Cavities PET Bottle Blow Molding Machine
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine 1
New Heating System for 6 Cavities PET Bottle Blow Molding Machine
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine 2
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine 3
Servo Technology Innovation On Clamping System & Stretching.
* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine 4
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine 5
Our Service
  • Standardized workshop of total 20,000 square meters.
  • Verification Certificates of equipments: ISO9001:2001; CE Certificate, Logo trademark registration, etc.
  • The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
  • Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
  • The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
  • Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
