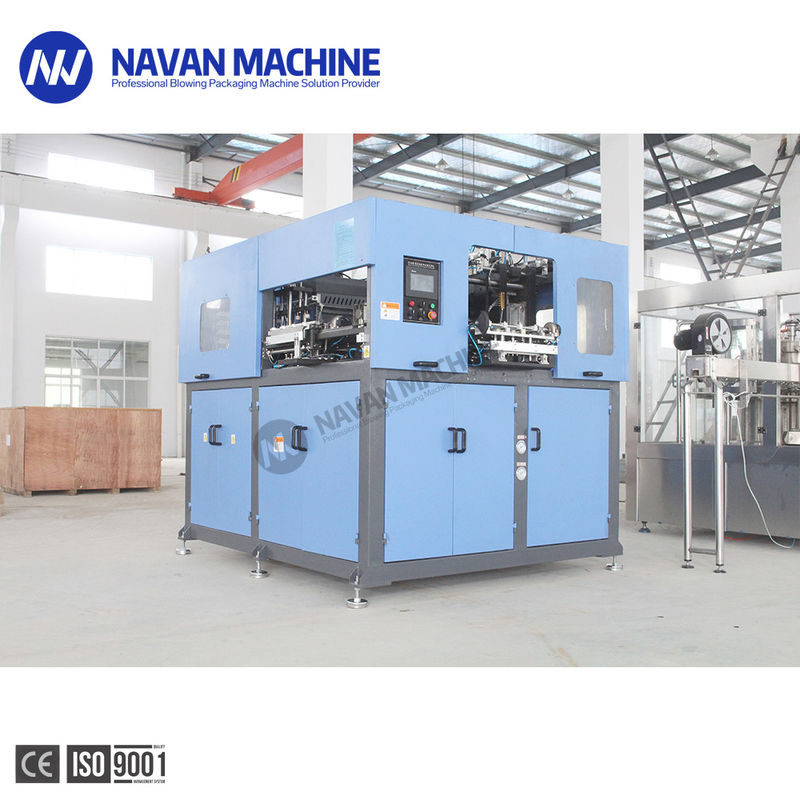

Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine
  • Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine
  • Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine
Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine

Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NB-4000
Product Details
Max Container Volume:
2Itr
Perform Inner Diameter:
50mm
Max. Bottle Diameter:
110mm
Max Bottle Height:
320mm
Cavity:
4
Output:
3000-4500BPH@500ml
Main Machine Size:
3000 X2130x2150mm
Installation Power:
50kw
High Light:

4500BPH automatic pet bottle making machine

,

3000BPH automatic pet bottle making machine

,

2Itr automatic pet bottle blow moulding machine

Product Description

Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.



Product Paramenters:

Model No.
Unit
NB-4000
NB-6000
Theoretical output
Pcs/hr
3000-4500
5500-7500
Container volume
L
0.2-2
0.2-2
Perform inner diameter
mm
50
50
Max. bottle diameter
mm
110
110
Max. bottle height
mm
320
320
Cavity
Pc
4
6
Blowing machine size
M
3000 x2130x2150
3700 x2150x2150
Blowing Machine weight
T
4
5.5
Preform loader dimension
M
2350x1350x2650
2350x1350x2650
Preform loader weight
T
0.55
0.55
Max. heating power
KW
48
72
Installation power
KW
50
75



Detailed Product:

Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine 0
New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine 1
New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine 2
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine 3
Servo Technology Innovation On Clamping System & Stretching.
* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine 4
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Fully Automatic 3000-4500BPH Servo PET Bottles Preform Blowing Machine 5

NAVAN Machinery.

We are a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. NAVAN Machinery can provide turn-key services for customers, from plant layout, equipment manufacture, and production line set up to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers. Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training, and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia, and South Africa.
