4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine
  • 4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine
  • 4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine
4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine

4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NB-4000
Product Details
Max Container Volume:
2Itr
Perform Inner Diameter:
50mm
Max. Bottle Diameter:
110mm
Max Bottle Height:
320mm
Cavity:
4
Output:
3000-4500BPH@500ml
Main Machine Size:
3000 X2130x2150mm
Installation Power:
50kw
Highlight:

4 Cavities automatic pet bottle blow molding machine

,

automatic pet bottle blow molding machine 0-2L

,

2Itr preform pet bottle machine

Product Description

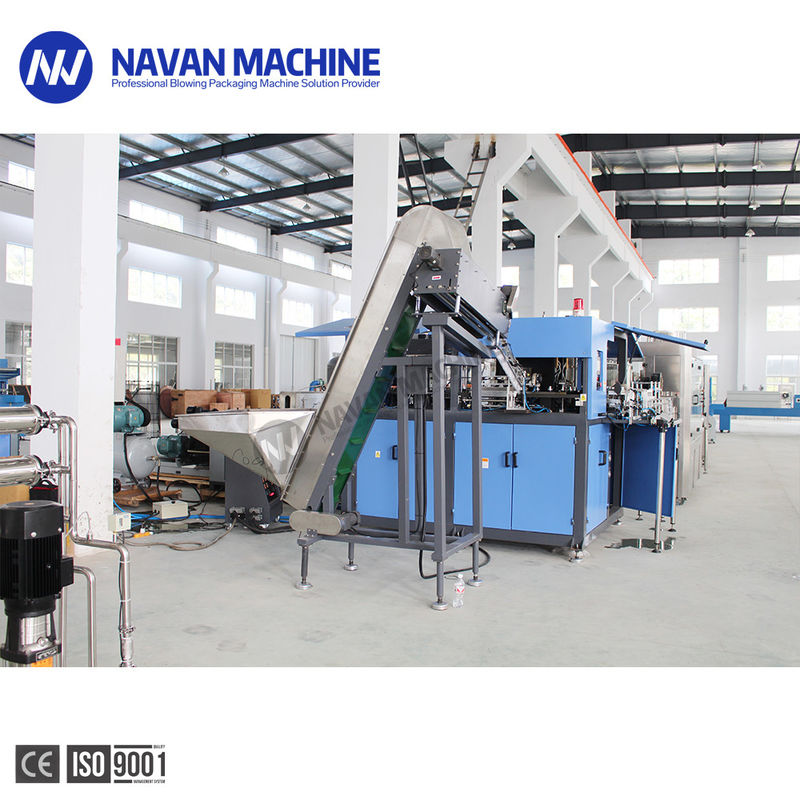

4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.



Product Paramenters:

Model No.
Unit
NB-4000
NB-6000
Theoretical output
Pcs/hr
3000-4500
5500-7500
Container volume
L
0.2-2
0.2-2
Perform inner diameter
mm
50
50
Max. bottle diameter
mm
110
110
Max. bottle height
mm
320
320
Cavity
Pc
4
6
Blowing machine size
M
3000 x2130x2150
3700 x2150x2150
Blowing Machine weight
T
4
5.5
Preform loader dimension
M
2350x1350x2650
2350x1350x2650
Preform loader weight
T
0.55
0.55
Max. heating power
KW
48
72
Installation power
KW
50
75



Detailed Product:

4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine 0
New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine 1
New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine 2
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine 3
Servo Technology Innovation On Clamping System & Stretching.
* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine 4
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
4 Cavities Fully Automatic 0-2L Preform PET Bottle Machine 5
