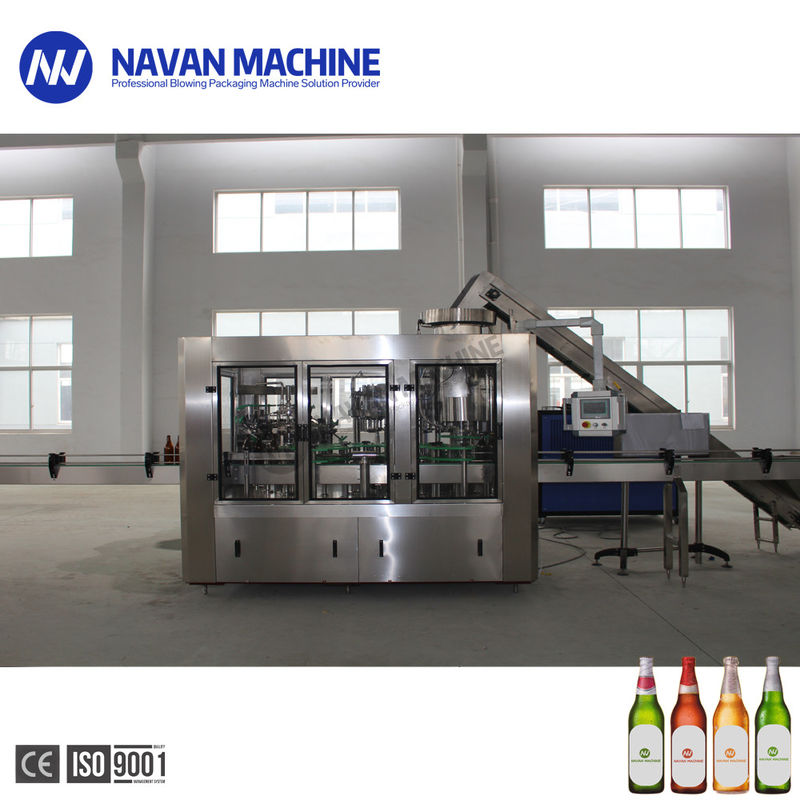

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line
  • Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line
  • Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line
Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NPXGF
Product Details
Material:
Food Stage Stainless Steel
Control:
PLC & Touch Screen Control
Capacity:
1000-18000BPH@330ml
Suitable Bottle:
Glass Bottle
Suitable Bottle Height:
160-340mm
Suitable Bottle Diameter:
50-100mm
Function:
Washing Filling Capping
After-sales Service Provided:
Engineers Available To Service Overseas/Online Support
High Light:

Alcoholic Beer Filling Machine

,

Winery Beer Filling Machine

,

18000BPH alcohol filling machine

Product Description

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line



Navan Beer Bottling Machine adopts the advanced international technology .The design is scientific and reasonable ,appearance is beautiful ,operation and maintenance are convenient ,and it is with high degree of automatization. It is the good machine for choosing by the drinking filling factory.



Structural Features

1. Adopt compressed air drying system to blow the water droplets. The plastic buffering clippers holds the bottle body to convey and protect the glass bottles.
2. Adopt bottle bottom holding and micro-negative-pressure filling type. The filling level is steady and speed stable, without leakage.
3. Adopt alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places. The device helps to ensure the quality of its production.
4. Easy operation. For the bottles with same diameter but a little difference in height, the 3in1 monobloc do not need changing exchanging parts. It just needs to adjust height of drying/filling/capping valves, so that time is saved and maintenance more convenient.
5. Independent electricity box makes sure every electrical appliance works smoothly.



Equipment Type Automatic


Bottle Type

Round or square glass bottle

Volume 200 - 1500ml

Bottle diameter 50-100mm

Bottle height 160-340mm
Output <bph> up to 18000 bph
Your product Beer / wine / vodka / fruit wine and so on
Certificates CE / SGS / ISO 9001


1. Glass bottle carbonated drink filler Triblock Bottle in-feed system

Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-1500ml.
Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line 0

Glass Bottle Washing.

The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held up words, after aseptic water rinsing, the bottle neck goes up and transported to another process.

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line 1

 Glass Bottle Filling

A. Filling valve adopts double vacuum to avoid oxygen left in bottles and prolong beer shelf life, with isobaric mechanical valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area, motor base is stainless steel contain carbon steel.
C. Guide bottle system, simple structure, according to bottle style ,can change
D. The whole machine can be controlled automatically by PLC.
E. Filling product liquid level height adopts liquid level probe control, liquid level steady, filling reliable.
F. The machine important parts and electrical elements is import production.
G. Filling product can be controlled automatically and have CIP washing connector.

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line 2

Capping Part

The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, press cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line 3



Beer bottling line Main configuration:

1) Material of filling valve: Stainless steel SUS316L.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: Simens
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: Mitsubishi
7) PLC: Mitsubishi.
8) Pneumatic components: Airtac.
