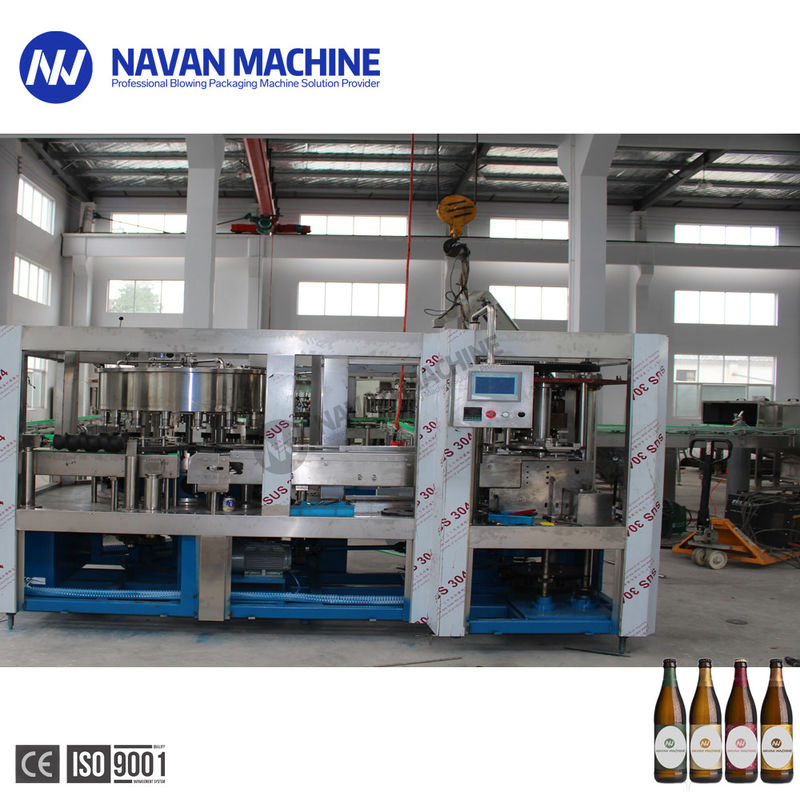

Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment
  • Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment
  • Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment
Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment

Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NPXGF
Product Details
Material:
Food Stage Stainless Steel
Control:
PLC & Touch Screen Control
Capacity:
1000-18000BPH@330ml
Suitable Bottle:
Glass Bottle
Suitable Bottle Height:
160-340mm
Suitable Bottle Diameter:
50-100mm
Function:
Washing Filling Capping
After-sales Service Provided:
Engineers Available To Service Overseas/Online Support
High Light:

Beer Filling Machine 18000BPH

,

1000BPH Beer Filling Machine

,

330ml beer bottle filling equipment

Product Description

Crown cap beer filling machine, automatic glass bottling equipment



Description:

This beer Filling machine is used for glass beer filling. The machine includes rinsing, filling and capping for crown cap. Adopted double time vacuum system to remove the CO2 content during filling as much as possible.



Equipment Type Automatic


Bottle Type

Round or square glass bottle

Volume 200 - 1500ml

Bottle diameter 50-100mm

Bottle height 160-340mm
Output <bph> up to 18000 bph
Your product Beer / wine / vodka / fruit wine and so on
Certificates CE / SGS / ISO 9001


1. Glass bottle carbonated drink filler Triblock Bottle in-feed system

Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-1500ml.
Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment 0

Glass Bottle Washing.

1.Rotary rinser: applicable for wine, beverage and water cleaning.
2.The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held upwords, after aseptic water rinsing, the bottle neck goes up and transported to another process.
3.The rinsing contact part and out cover adopt the stainless steel material
4.Open design gear driving.

Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment 1

 Glass Bottle Filling

1.Adopt the German technology, utilize the isobaric filling principle design, achieve to fill the cleaned bottle
2.Adopt isobaric mechnical valve ,fast filling with high precision filling level.
3.Adopt the guiding pole with cover function ;bottle held elevation desgin , ensures the complete seal between bottle neck and filling valve ,avoids the leakage.
4.Equip with the anti break device ;bottle break cleaning ,avoiding the next botte .
5.Equip with complete CIP cleaning function

Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment 2

Capping Part

1.Cappig part :sorted cap is capped on the filled bottle ,and then transported to the next step.
2.Capper rotates through the speed reducer machine .The cap leaves the hopper under the centrifugal function .The exit is equipped with the cap reverce dvice ,when the reverce cap comes ,it is changed to the right direction ;the cap quantity is controlled by the photoelectric switch ,ensures the caping falling effect.
3.If the container has the cap ,the second cap cannot go in ,which utilizes the cap .
4.And it is equipped with photo eletric swith on the slding trail ,when it tests that there is no cap ,it stops automatically.

Crown Cap Beer Filling Machine Automatic Beer Bottle Filling Equipment 3



Our service
Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
