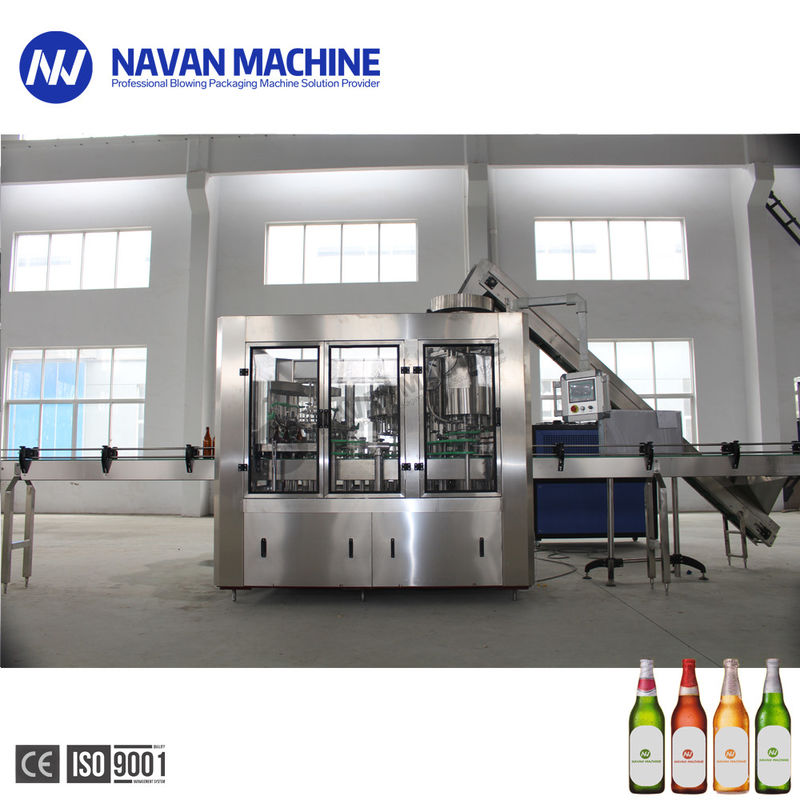

Compact Beer Filling Machine Automatic Glass Bottling Machine
  • Compact Beer Filling Machine Automatic Glass Bottling Machine
  • Compact Beer Filling Machine Automatic Glass Bottling Machine
Compact Beer Filling Machine Automatic Glass Bottling Machine

Compact Beer Filling Machine Automatic Glass Bottling Machine

Place of Origin China
Brand Name NAVAN MACHINE
Certification CE,ISO
Model Number NPXGF
Product Details
Material:
Food Stage Stainless Steel
Control:
PLC & Touch Screen Control
Capacity:
1000-18000BPH@330ml
Suitable Bottle:
Glass Bottle
Suitable Bottle Height:
160-340mm
Suitable Bottle Diameter:
50-100mm
Function:
Washing Filling Capping
After-sales Service Provided:
Engineers Available To Service Overseas/Online Support
High Light:

18000BPH Beer Filling Machine

,

1000BPH Beer Filling Machine

,

Beer automatic glass bottling machine

Product Description

Compact Beer Filling Machine , Automatic Glass Bottling Machine



leader type centering cover, twice vacuumizing, low-temperature equal-pressure filling, automatic concentrated lubrication and the capping heads have been installed with overloading protection device. The crafty cap-unscrambling and capping design with overloading protection and the function is sufficient. It is controlled by PLC.



Main Feature:

This machine has a compact structure, perfect control system, easy to operate and highly automated.

The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

This machine has a high efficient cap arranging system, perfect cap feeding and protection device.

Equipped with perfect clean management system to ensure the bottle clean.

Only by changing the star-wheel, can realize to fill the changed bottle shape.

The machine adopts perfect overload protective device can ensure the operator and machine safe.

This machine adopts adjustable frequency converter.

The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

he electric components and pneumatic components are all introduced from world famous brand products.





Equipment Type Automatic


Bottle Type

Round or square glass bottle

Volume 200 - 1500ml

Bottle diameter 50-100mm

Bottle height 160-340mm
Output <bph> up to 18000 bph
Your product Beer / wine / vodka / fruit wine and so on
Certificates CE / SGS / ISO 9001


1. Glass bottle carbonated drink filler Triblock Bottle in-feed system

Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-1500ml.
Compact Beer Filling Machine Automatic Glass Bottling Machine 0

Glass Bottle Washing.

The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held up words, after aseptic water rinsing, the bottle neck goes up and transported to another process.

Compact Beer Filling Machine Automatic Glass Bottling Machine 1

 Glass Bottle Filling

A. Filling valve adopts double vacuum to avoid oxygen left in bottles and prolong beer shelf life, with isobaric mechanical valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area, motor base is stainless steel contain carbon steel.
C. Guide bottle system, simple structure, according to bottle style ,can change
D. The whole machine can be controlled automatically by PLC.
E. Filling product liquid level height adopts liquid level probe control, liquid level steady, filling reliable.
F. The machine important parts and electrical elements is import production.
G. Filling product can be controlled automatically and have CIP washing connector.

Compact Beer Filling Machine Automatic Glass Bottling Machine 2

Capping Part

The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, press cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.

Compact Beer Filling Machine Automatic Glass Bottling Machine 3



Beer bottling line Main configuration:

1) Material of filling valve: Stainless steel SUS316L.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: Simens
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: Mitsubishi
7) PLC: Mitsubishi.
8) Pneumatic components: Airtac.
