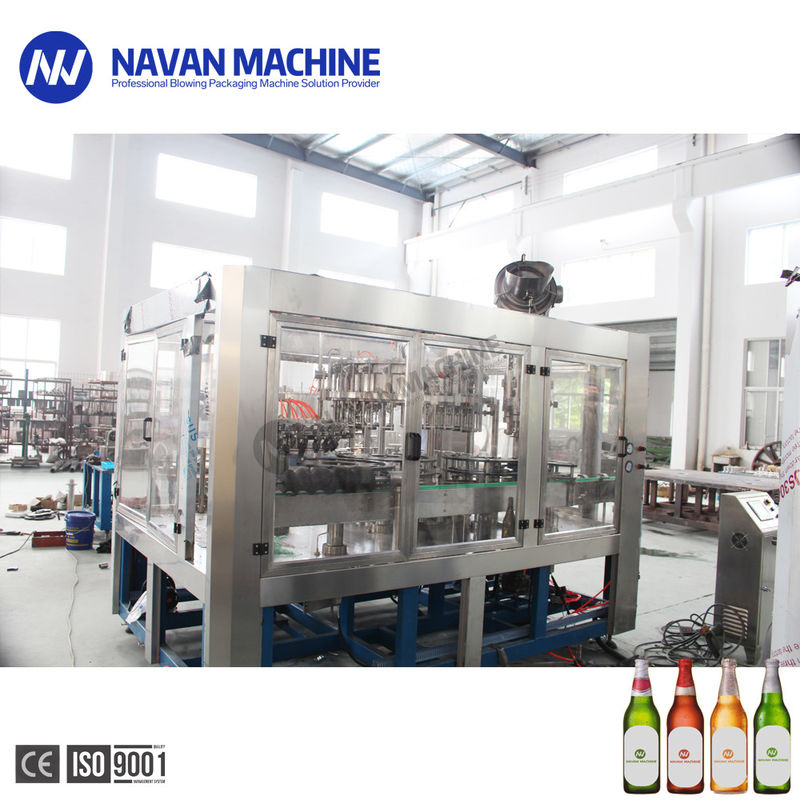

Beer Wine Filling Machine , Glass Bottle Filling Line High Production Speed
Description:
The equipment is used for the bottling of glass bottled carbonated drink, beer or carbonated wine with aluminum screw cap or crown cap.
It integrates washing ,filling ,capping together.The design is scientific and reasonable, It's appearance is beautiful, operation and maintenance is easy.
GLASS BOTTLE FILLING PART
a) Rotary pan is made of stainless steel 304
b) The way of filling is isobaric filling.
c) The filling valve is adopted best stainless steel 304
d) The structure of filling valve is reasonable and high precision of filling.
e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The cam device with the action of gear realize the up and down of bottle.
| Equipment Type |
Automatic |
|
Bottle Type
|
Round or square glass bottle
Volume 200 - 1500ml
Bottle diameter 50-100mm
Bottle height 160-340mm
|
| Output <bph> |
up to 18000 bph |
| Your product |
Beer / wine / vodka / fruit wine and so on |
| Certificates |
CE / SGS / ISO 9001 |
1. Glass bottle carbonated drink filler Triblock Bottle in-feed system
Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-1500ml.
Glass Bottle Washing.
The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held up words, after aseptic water rinsing, the bottle neck goes up and transported to another process.
Glass Bottle Filling
A. Filling valve adopts double vacuum to avoid oxygen left in bottles and prolong beer shelf life, with isobaric mechanical valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area, motor base is stainless steel contain carbon steel.
C. Guide bottle system, simple structure, according to bottle style ,can change
D. The whole machine can be controlled automatically by PLC.
E. Filling product liquid level height adopts liquid level probe control, liquid level steady, filling reliable.
F. The machine important parts and electrical elements is import production.
G. Filling product can be controlled automatically and have CIP washing connector.
Capping Part
The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, press cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.
Beer bottling line Main configuration:
1) Material of filling valve: Stainless steel SUS316L.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: Simens
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: Mitsubishi
7) PLC: Mitsubishi.
8) Pneumatic components: Airtac.
