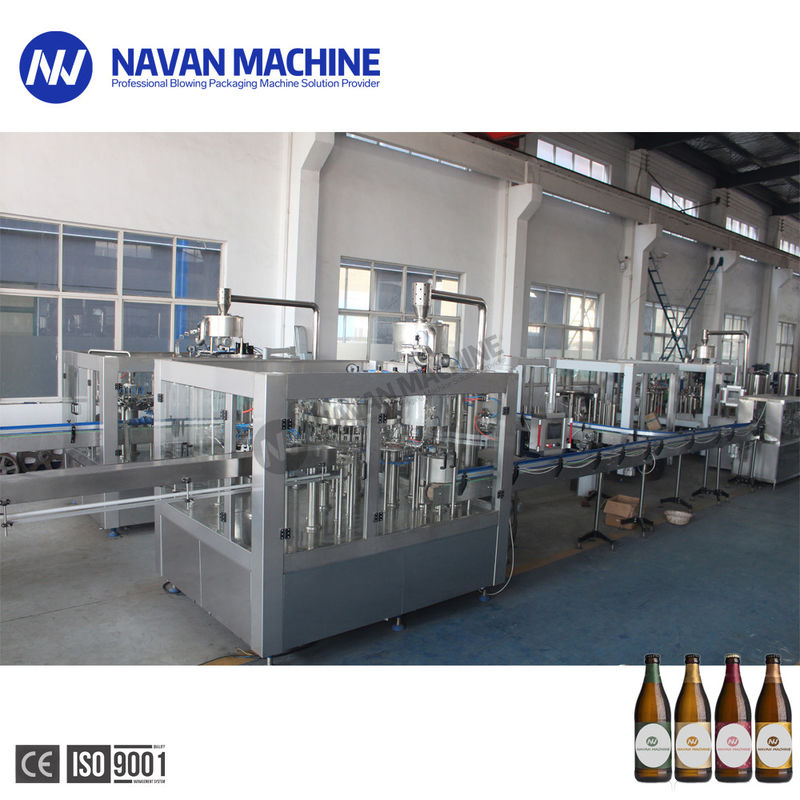

Automatic Glass Bottled Beer Filling Machine , Balanced Pressure Monoblock Filler
| Equipment Type | Automatic |
Bottle Type | Round or square glass bottle Volume 200 - 1500ml Bottle diameter 50-100mm Bottle height 160-340mm |
| Output <bph> | up to 18000 bph |
| Your product | Beer / wine / vodka / fruit wine and so on |
| Certificates | CE / SGS / ISO 9001 |
Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Glass Bottle Washing.
The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held up words, after aseptic water rinsing, the bottle neck goes up and transported to another process.
Glass Bottle Filling
A. Filling valve adopts double vacuum to avoid oxygen left in bottles and prolong beer shelf life, with isobaric mechanical valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area, motor base is stainless steel contain carbon steel.
C. Guide bottle system, simple structure, according to bottle style ,can change
D. The whole machine can be controlled automatically by PLC.
E. Filling product liquid level height adopts liquid level probe control, liquid level steady, filling reliable.
F. The machine important parts and electrical elements is import production.
G. Filling product can be controlled automatically and have CIP washing connector.
Capping Part
The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, press cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.
Competitive Advantage:
1. All the stainless steel is made of high quality of SUS304 material, good guarantee of food grade for beverage production line.
2. The water treatment machines are with good polish and nice appearance.
3. For the hollow fiber ultrafiltration machine, we have UPVC and stainless steel filter pipe for choice.
4. We can make the machines customised for you.
