5 Gallon Water Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | QGF |

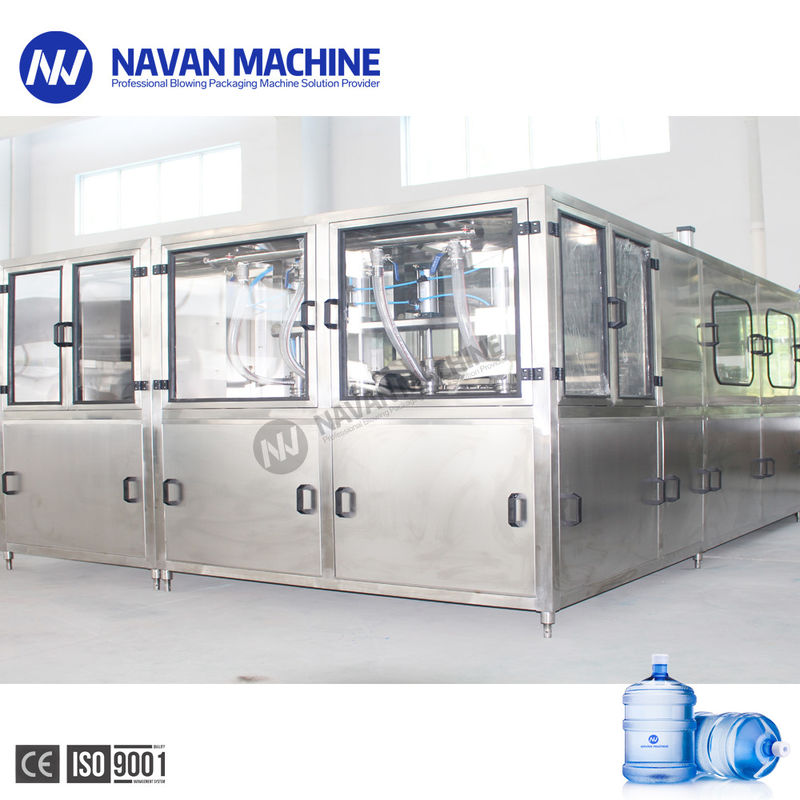

600BPH Automatic 5 Gallon Water Filling Machine For Drinking Water
Features of our gallon water production machine
1. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
2. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
2. Monoblock rinser-filler-capper:
The 20L filling machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily. Main electric parts are all branded. Air channel system use Air TAC brand product. The machine is with compact construction,will occupy small room,working efficiency is high. Only need 2 operators to control, is a good choice for factory to choose.
Product Paramenters:
| Model | QGF-600 |
| Production Capacity(B/H) | 600 |
| Filling heads | 4 |
| Machine type | Linear type |
| Filling capacity(L) | 10~20L |
| Barrel specification | Ф270X490mm |
| Air source pressure(MPa) | 0.4-06 |
| Air consumption(m3/min) | 0.6 |
| Total Power(Kw) | 6.2 |
| Overall Dimensions(L×W×H)(mm) | 3900×2050×1700 |
| Total Weight(Kg) | 2500 |
Outside Brusher Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.
Rinsing part
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Bottle Filler
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Bottle Capper
1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
