5 Gallon Water Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | QGF |

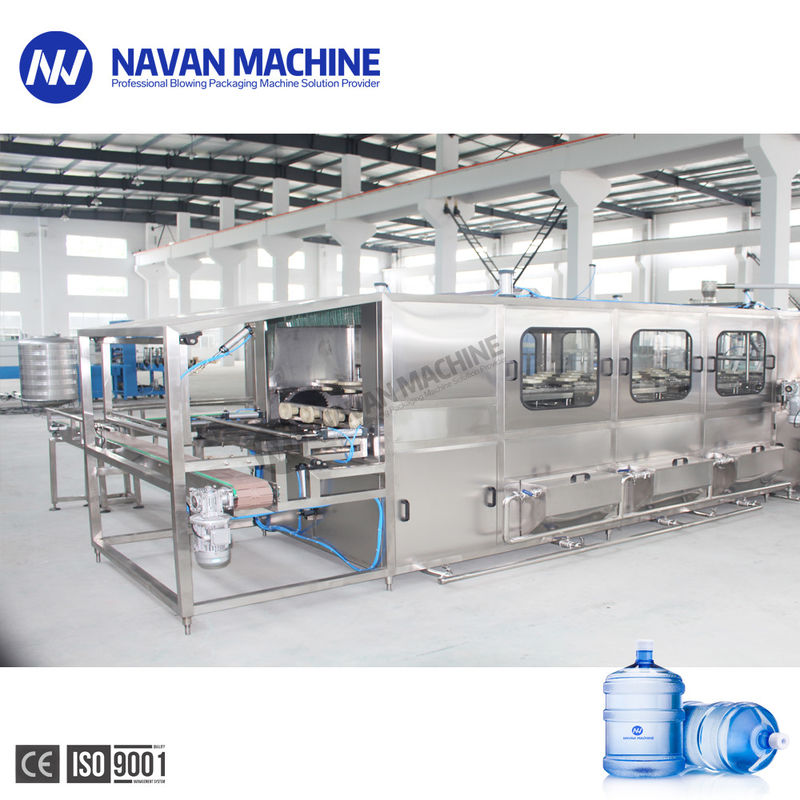

600BPH Fully Automatic 5 Gallon Water Bucket Filling Machine Production
General introduction
The 5 gallon water filling machine specially for 3 - 5 gallon barreled drinking water ,It integrates bottle washing ,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,the washing machine uses multi washing liquid spray and thimerosal spray ,this thimerosal can be circularly ,the capping machine can cap barrel automaticlly ,this line equips with water spraying device in order to ensure those caps sterilie and clean ,it also can automatically carry out barrel ,washing ,sterilizing ,filling ,capping ,counting and products discharging ,with complete funciton ,modern design and high degree of automation .it is a new kind of barreled water auto production line ,which integrates mechanism ,electricity and pneumatics technologies together.
Product Paramenters:
| Model | QGF-600 |
| Production Capacity(B/H) | 600 |
| Filling heads | 4 |
| Machine type | Linear type |
| Filling capacity(L) | 10~20L |
| Barrel specification | Ф270X490mm |
| Air source pressure(MPa) | 0.4-06 |
| Air consumption(m3/min) | 0.6 |
| Total Power(Kw) | 6.2 |
| Overall Dimensions(L×W×H)(mm) | 3900×2050×1700 |
| Total Weight(Kg) | 2500 |
Applications:
Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles.
Outside Brusher Machine
Nylon brushes, long life service life
Energy saving
The material of machine frame and body: all 304 Stainless Steel
No bottles no washing
Rinsing part
12 steps washing procedure: 1. pre-washing, 2&3. alkali washing, 4.dropping 5&6 recycle water washing 7. dropping 8&9 disinfect water washing 10&11 finish water washing 12.dropping
>>All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
>>304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
>>304 stainless steel Rinsing pumps
>> All food grade SUS304/316 design
>> Effectively clean bottle and save water
>> Resting waiting for water drops
Bottle Filler
>>High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily
>>All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
>> Filling valve, guide rail, elevating device, etc.
>> Gravity filling type (No touch filling type)
>> Filling volume adjustable
>> All food grade SUS304/316 design, harmless for beverages and easy to clean
>>No bottle no filling
Bottle Capper
>>Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
>>All 304stainless steel construction
>> Cap unscrambler, cap drop rail and capper
>> Minimum bottle crash during capping
>> No bottle no capping
