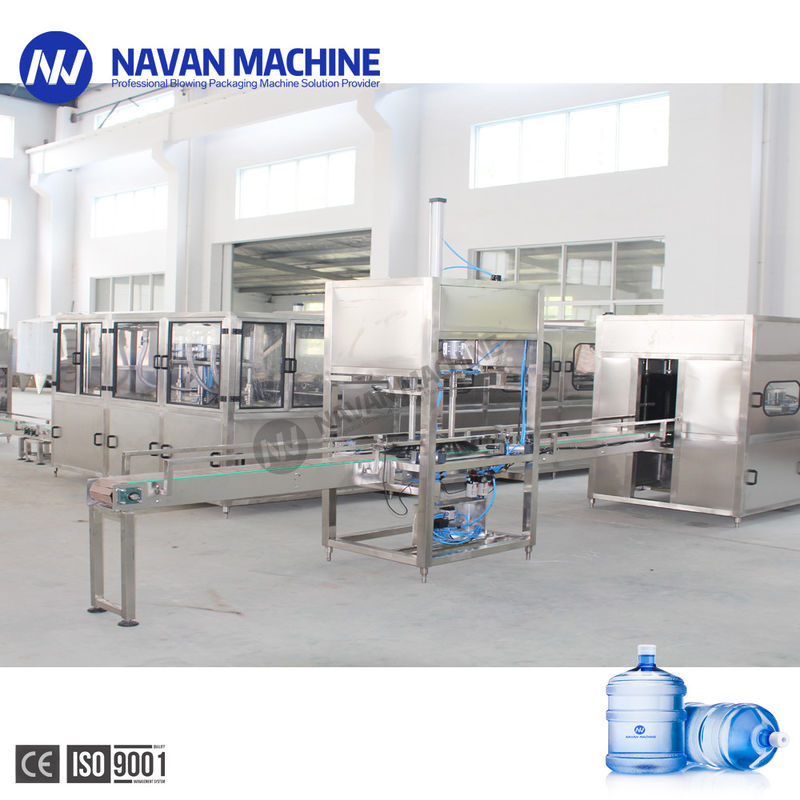

Automatic 5 Gallon Water Bottle Filling Machine 600BPH
general introduction
The 5 gallon water bottle filling machine is dedicated to 3 gallon and 5 gallon barreled drinking water. It integrates bottle washing, filling and capping. Specially pull the lid for the recycling bin to improve work efficiency. The 5 gallon water bottle filling machine is made of high-quality SUS304 stainless steel, which is corrosion-resistant and easy to clean. In order to achieve the purpose of washing and disinfection. Washing machines use a multi-washer liquid spray and a sanitizer spray. This disinfectant can be recycled. The capping machine can automatically cover the bucket. This 5 gallon water filling line is equipped with water spray equipment to ensure that those caps are sterile and clean. It can automatically complete barreling, cleaning, sterilization, filling, capping, counting, and production. It has complete functions, novel design and high degree of automation. It is a new type of bottled water automatic production line integrating mechanical, electrical and pneumatic technologies.
Applications:
Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles.
Product Paramenters:
| Model | QGF-600 |
| Production Capacity(B/H) | 600 |
| Filling heads | 4 |
| Machine type | Linear type |
| Filling capacity(L) | 10~20L |
| Barrel specification | Ф270X490mm |
| Air source pressure(MPa) | 0.4-06 |
| Air consumption(m3/min) | 0.6 |
| Total Power(Kw) | 6.2 |
| Overall Dimensions(L×W×H)(mm) | 3900×2050×1700 |
| Total Weight(Kg) | 2500 |
FEATURES OF 5 GALLON WATER BOTTLE FILLING MACHINE
Material of the 5 gallon water bottle filling machine: The frame, sealing plate and water tank of the machine are all made of 304 stainless steel.
Conveying Parts: The Rising conveyor is driven by a motor, which can accurately convey the bucket, which is easy to control, and the bucket falls more smoothly after the washing is completed.
Bearing: The bearing is upgraded with SUS304 stainless steel, which is more sanitary, corrosion resistant and has a longer life. This kind of bearing is easy to install, may work in the harsh environment.
Washing Parts in gallon filling machine: High pressure AISI304 washing nozzle, no washing dead corner, to make sure better washing effect and improve product quality.
Filling Parts in gallon filling machine: The filling part is upgraded to use non-contact filling, fast filling, precise control of the liquid level, without wasting a drop of water.
Capping Parts in gallon filling machine: Automatic put cap onto bottle mouth, and use pneumatic cylinder to press cap tight. It’s energy-saving and low noise.
Electrical Control System: It is made up of PLC, relay, intermediate relay, sensor and other components. Each action time of the whole line can be setting dependently on the man-machine interface.
Outside Brusher Machine
The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing position, the cylinder will stop 3bottles inside and fixed them by brushes and fixing bar, the water will be pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by brushes and water function;
No air compressor needed, it is easy for production and maintenance;
Rinsing part
Bottle Filler
Bottle Capper
Washer/Filler/Capper with auto bottle loading
The machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.Main electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact construction,will occupy small room,working efficiency is high.Only need 2 operators to control, is a good choice for factory to choose.
The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power , air power.
