5 Gallon Water Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | QGF |

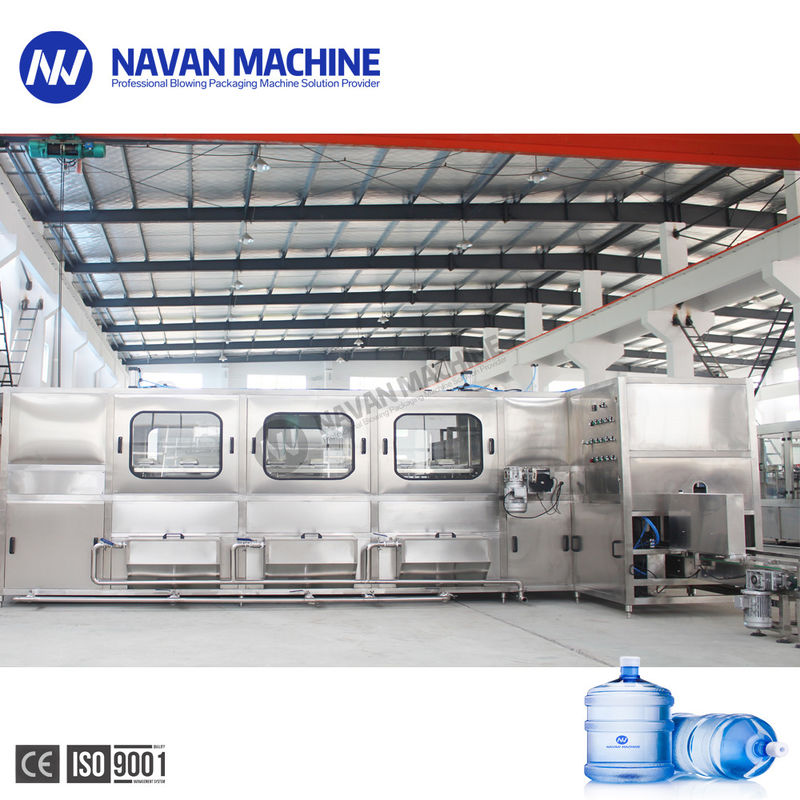

600BPH Automatic 5 Gallon Bucket Filling Machine Touch Screen Control System
general introduction
Barrels under the convey system enter into external washing machine, and tightly close to main circle soft brush. Main circle brush travel direction reverse to barrel rotary direction. Barrel under the function of the thumb wheel finish revolution once, rotation forth. Washing pump go on spraying water and cleaning lotion to each brush and collect water for circle return usage. Outside barrel washing is under 270°, after revolution then enter into showing washing then convey out. The spray water and washing lotion of Showing room coming from the same pump, also for return and circle usage.
Product Paramenters:
| Model | QGF-600 |
| Production Capacity(B/H) | 600 |
| Filling heads | 4 |
| Machine type | Linear type |
| Filling capacity(L) | 10~20L |
| Barrel specification | Ф270X490mm |
| Air source pressure(MPa) | 0.4-06 |
| Air consumption(m3/min) | 0.6 |
| Total Power(Kw) | 6.2 |
| Overall Dimensions(L×W×H)(mm) | 3900×2050×1700 |
| Total Weight(Kg) | 2500 |
Applications:
Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles.
Outside Brusher Machine
Nylon brushes, long life service life
Energy saving
The material of machine frame and body: all 304 Stainless Steel
No bottles no washing
Rinsing part
Bottle Filler
Full-automatic PLC control, full-automatic working, filling level, filling time adjustable
Linear cylinder-pushed filling style, super high precision, ( when the capacity up to 800BPH, adopt the rotary filling system )
Food Class 304 or 316L stainless steel contact parts
No bottles no filling
Bottle Capper
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years, can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high-quality machines with a 1-year guarantee and free spare parts for 1 year. Meanwhile, our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed on both sides.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
