5 Gallon Water Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | QGF |

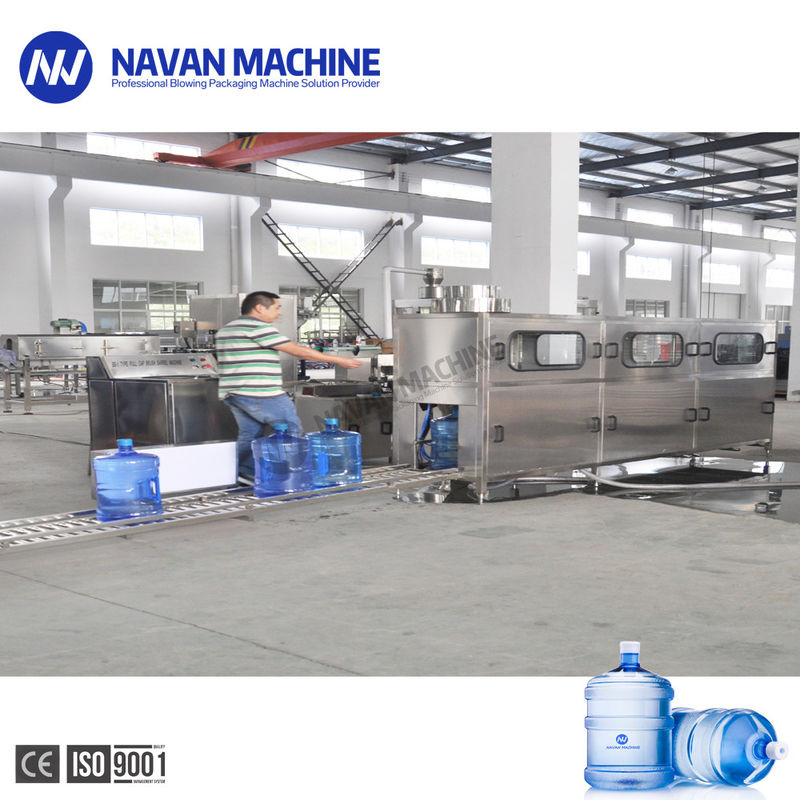

100BPH PET bottle 20L Water Filling Machinet adjustable volume
Description
The fully automatic 20 liter canned water filling machine is specially designed for 3-5 gallon barreled drinking water with a capacity of 100BPH. The whole gallon water production line includes automatic cap opening machine, outer barrel cleaning machine, automatic capping machine, automatic cleaning filling and capping machine, shrink labeling machine. The filling system has stable performance, simple operation and simple maintenance. The whole process reduces the possibility of secondary pollution and meets hygienic standards. The body of the 20-liter jar filling machine is all made of 304 stainless steel, and other parts are also made of high-quality composite materials. The pneumatic system uses imported components. The gallon filling equipment has a low failure rate and high stability.
Product Paramenters:
| Model | QGF-100 |
| Production Capacity(B/H) | 100 |
| Filling heads | 4 |
| Machine type | Linear type |
| Filling capacity(L) | 10~20L |
| Barrel specification | Ф270X490mm |
| Air source pressure(MPa) | 0.4-06 |
| Air consumption(m3/min) | 0.6 |
| Total Power(Kw) | 6.2 |
| Overall Dimensions(L×W×H)(mm) | 3900×2050×1700 |
| Total Weight(Kg) | 2500 |
Rinsing part
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Bottle Filler
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Bottle Capper
1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
How to find a suitable 5 Gallon filling line?
1. The gallon barrels used are all new gallon barrels? Or recycled old barrels? If it's new, do you need a bottle blow molding machine?
2. Do the gallon barrels have a handle? And wha's the shape is it?Is the cover press-cap or screw-cap?
3. The volume of barrel is 3 gallons or 5 gallons ?
4. The capcity of the gallon filler? How many barrels are produced per hour? How many barrels are produced per hour?We can provide 120BPH-2000BPH.
5. Is the cover press-cap or screw-cap?
6.You only need a gallon filler, or would you like to have a complete line containing the packaging part?
7. Do you need additional spare parts for vulnerable parts?
8. Are there any brand or other requirements for the electrical parts of the machine?
9. Does the gallon filler(more than 300 bottles) require special matching machines, such as bottle bag packing machine or gallon palletizer?
