5 Gallon Water Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | QGF |
450BPH Water Barrel Filling Equipment for PET 5 Gallon Bottle
Description:
This type automatic inside and outside gallon bottle brusher is mainly used to brush the 3 or 5 gallong bottle barrels in gallon water filling machine line. It's for both inside and outsdie brushing of new PET bottle or recycled bottle.
It's automatic with speed adjustable to match the water filling line. This machine needs to be offered compressed air for brusher function.
It's set with outside machine frame to guarantee better space for whole effect.
Product Paramenters:
| Model | QGF-450 |
| Production Capacity(B/H) | 450 |
| Filling heads | 4 |
| Machine type | Linear type |
| Filling capacity(L) | 10~20L |
| Barrel specification | Ф270X490mm |
| Air source pressure(MPa) | 0.4-06 |
| Air consumption(m3/min) | 0.6 |
| Total Power(Kw) | 6.2 |
| Overall Dimensions(L×W×H)(mm) | 3900×2050×1700 |
| Total Weight(Kg) | 2500 |
.
Outside Brusher Machine
Rinsing part
Bottle Filler
Bottle Capper

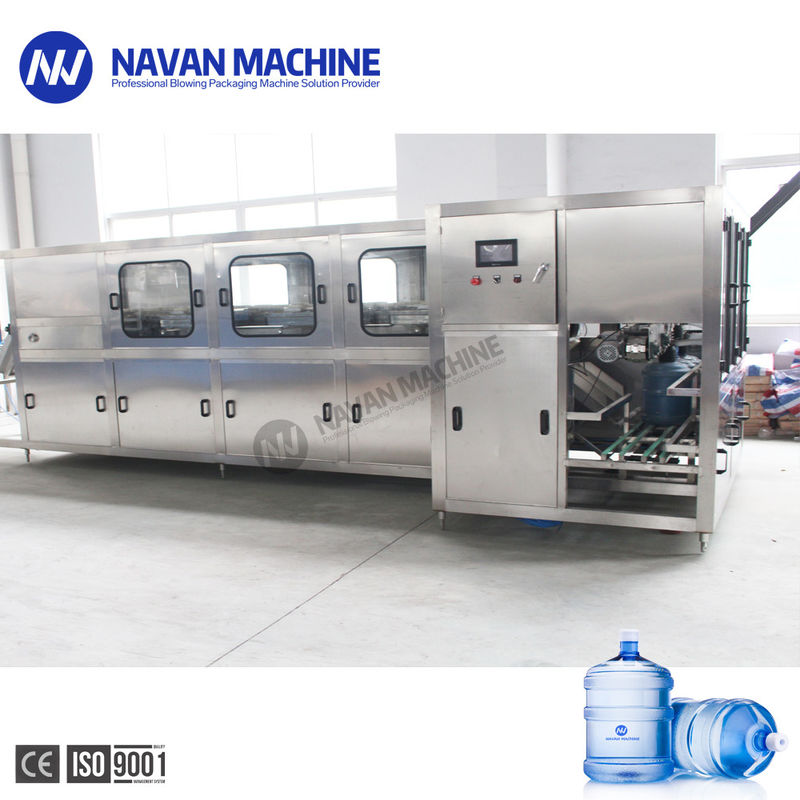

Water Filling Machine Automatic PET Bottled 5 Gallon Filing Capping Machine
3-5 Gallons Barreled Water Production Line
(1) QGF series automatic production line is specialized for production of 3-5 Gallon barrel
(2) The machine consists of washing, filling and sealing in one
(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of
washing sterilization.The disinfectant is recyclable
(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation
device to ensure the sanitation of cap
(5) Washing, disinfection, filling, gland, counting and discharging is automatic
(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure,
small occupation of land and high automation
