5 Gallon Water Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | QGF |

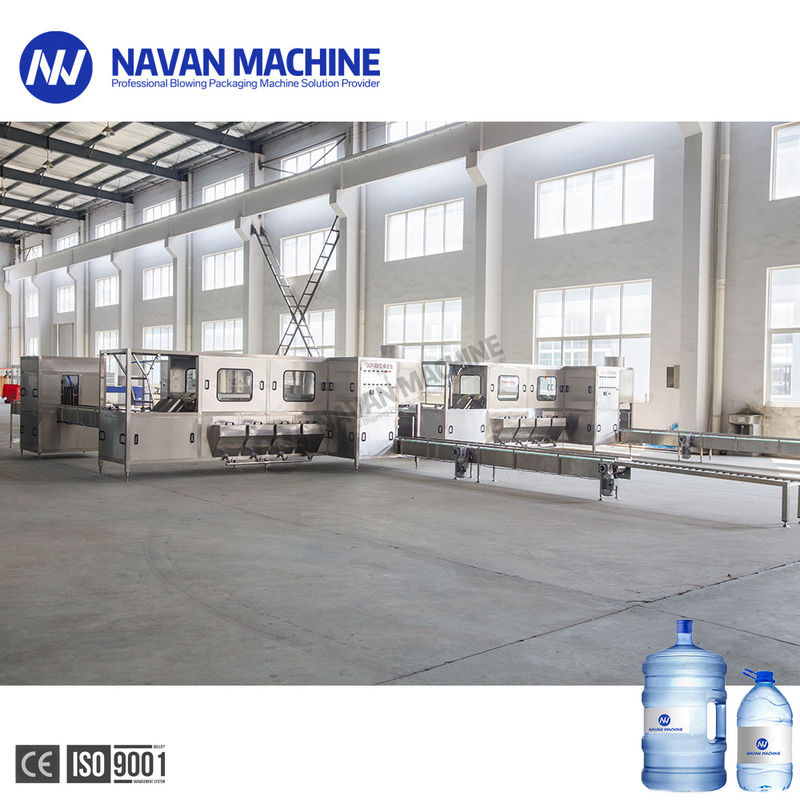

Full Automatic 5 Gallon Water Filling Machine 10-20L Barrel Drinking Line
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
Product Paramenters:
| Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Production Capacity(B/H) | 100-150 | 250-300 | 400-450 | 600 | 900 | 1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
| Machine type | Linear type | Linear type | Linear type | Linear type | Rotary type | Rotary type |
| Filling capacity(L) | 10~20L | |||||
| Barrel specification | Ф270X490mm | |||||
| Air source pressure(MPa) | 0.4-06 | |||||
| Air consumption(m3/min) | 0.35 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 |
| Total Power(Kw) | 2.9 | 3.5 | 4.3 | 6.2 | 8.7 | 9.5 |
|
Overall Dimensions (L×W×H)(mm) |
2600×650 ×1550 |
3900×150 0×1700 |
3900×1775 ×1700 |
3900×2050 ×1700 |
2200×1860 ×2200 |
2560×2350 ×2200 |
| Total Weight(Kg) | 800 | 1500 | 2000 | 2500 | 3000 | 3500 |
Flow Chart:
Empty bottle Conveyor belt------Automatic Leakage Checker-----Caps Decapper --- Brush External Bottle Washer ----- ---Automatic Bottle Loading System---- Internal Bottle Washer/ Disinfecter ----
Rotary Filler & Chain Plate Capper---Filled Bottle Conveyor Belt----Lamp Checker Insert the
caps label by workers----Label Heat Shrinking Machine Filled Bottles Conveyor Belt to the truck or
stock room
Outside Brusher Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTECH.
Rinsing part
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Bottle Filler
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Bottle Capper
1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
