Automatic Bottle Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF40-40-10/12 |

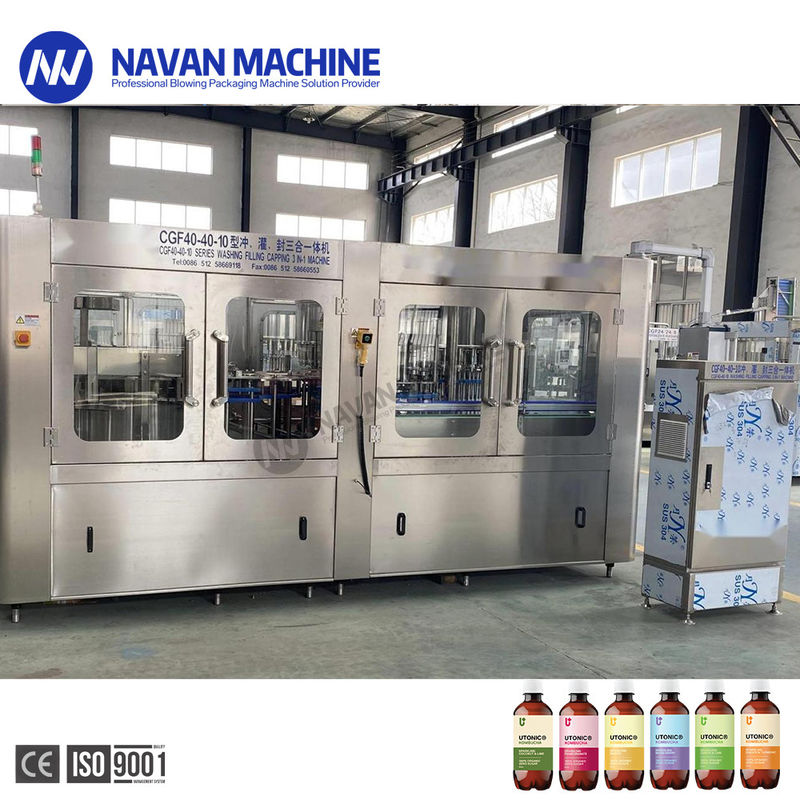

20000BPH Automatic Monoblock PET Bottle Kombucha Filling Machine
CGF three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of tea , juice , non-carbonated drink etc.
Product Paramenters:
| Model | CGF40-40-10/12 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 40-40-10/12 |
| Production Capacity(500ml) | 19000-20000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification | Volume=100-2500ml Diameterφ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 7.5kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 4600*2800*2600 |
| Weight (kg) | 8500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Rinser Station:
Filler station
Capper Station
Electric Part & Safe Device & Automation:
Machine Base & Machine Construction:
