Automatic Bottle Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | NXGF24-24-8 |

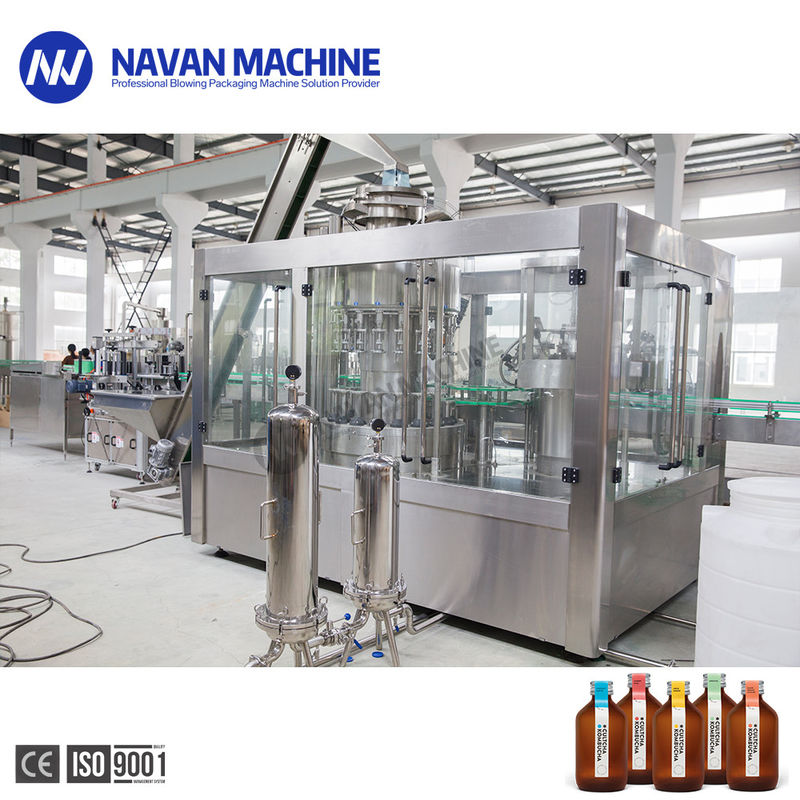

Automatic 24Heads Glass Bottle Liquid Kombucha Washing Filling Capping Machine
This glass bottle filler and capper is developed on the base of digesting ,absorbing and improving the advanced technology introduced from all over the world , up to international level .This series of machines can meet the filling –sealing requirements of different sealing manners for capper ,T-cork , wooden cork capper ,screw capper etc , and can be applied to water ,carbonated soft drink ,fruit juice ,coffee drink, protein drinks , beer ,rice wine and so on ,with domestic technology leading level .The machines adopt the international popular design technology .Its design is scientific and reasonable , appearance is beautiful , operation and maintenance is convenient , and it is with high degree of automation .So it is the good machine choosing for middle and beginning factory .
Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc
| Main Technical parameters | |
| Model | NXGF24-24-8 |
| Produciton capacity(330ml) | 8000-9000 |
| Heads of Rinsing Filling & Capping | 24-24-8 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 4 |
| Total power(kw) | 4.18 |
| Overall dimensions(mm) |
3280x2420x3200 |
| Weight(kg) | 5000 |
Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
