Automatic Bottle Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | NPXGF18-18-6 |

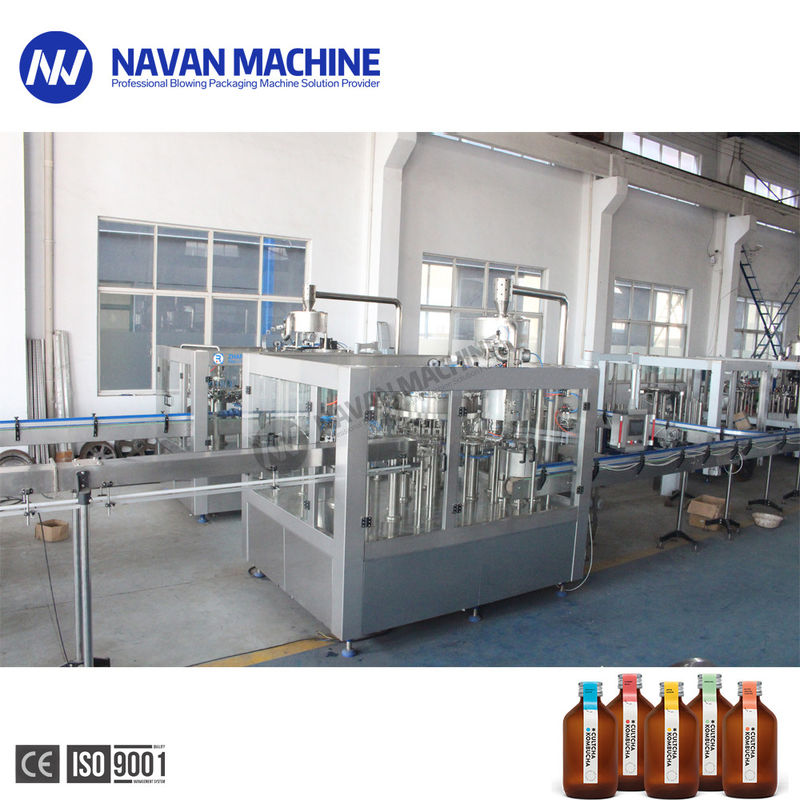

Automatic 0-2L Glass Bottle Soad Carbonated Drink Kombucha Filling Machine
It's set with18 washing heads, 18 filling heads, 6 sealing heads, bottle washer, filler, sealer and sorter.
-- 2M Bottle inlet conveyor and 4m bottle outlet conveyors for connecting the main machine, the screw rod before washing is set to make the bottles infeeding stable when in high speed filling state.
-- Automatic cap lifter is set here for lifting caps to reduce the labor and improve the efficiency.
-- Professional beer filling valves for filling, banlanced pressure liquid filling tank.
-- Water rinsing pump one set, main motor one set, vacuum pump one set, electric control cabient.
-- Main spindles, transmission device, worm wheel, machine outside frame, transparent organic glass door.
Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc
| Main Technical parameters | |
| Model | NPXGF18-18-6 |
| Produciton capacity(330ml) | 3000-5000 |
| Heads of Rinsing Filling & Capping | 18-18-6 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Isobaric filling (twice vacuumized ) |
| Filling temperature (℃) | 0~5 |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 3 |
| Total power(kw) | 3.18 |
| Overall dimensions(mm) | 3012x2012x3260 |
| Weight(kg) | 3800 |
Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
Competitive Advantage:
1. Our machine is with good quality and price, we can make the machine customized for you if need.
2. We are a professional manufacturer in every kind of beverage production machine.
3. We have the certifications of ISO, CE and so on.
4. Our company machines are exported to many countries abroad every year.
5. We can offer free technician support and consultation to help you to order a new equipment and start a new company.
6. We can offer one year guarantee for the machine you ordered freely, forever technology supports in our machine and related machine.
7. W can send our technician to your country for machine commissioning and instruction conveniently.
8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.
