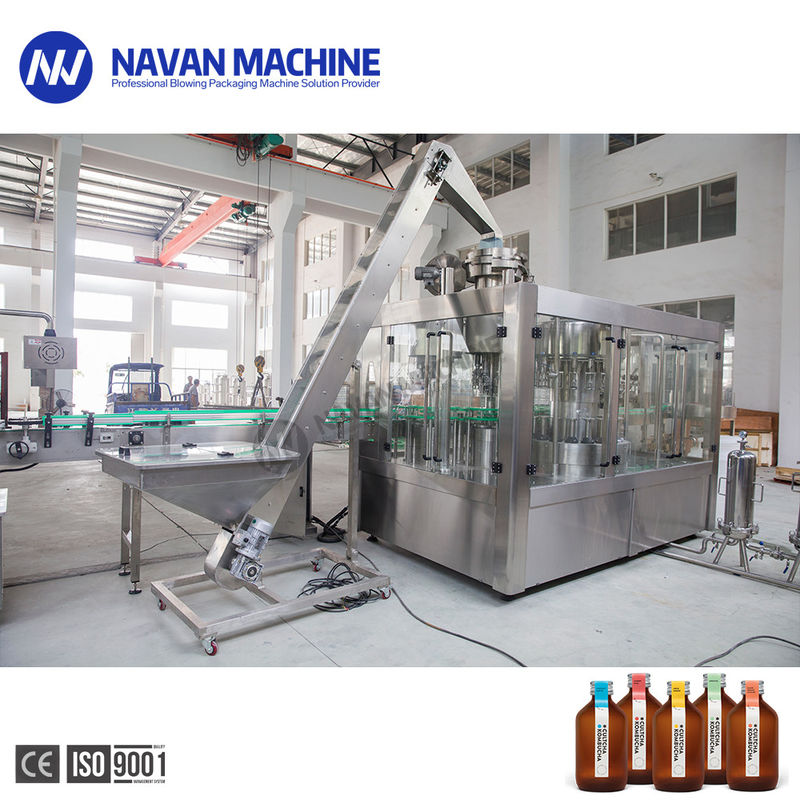

Automatic 8000-9000BPH Glass Bottle Kombucha 3-In-1 Filling Machine
This glass bottle filler and capper is developed on the base of digesting ,absorbing and improving the advanced technology introduced from all over the world , up to international level .This series of machines can meet the filling –sealing requirements of different sealing manners for capper ,T-cork , wooden cork capper ,screw capper etc , and can be applied to water ,carbonated soft drink ,fruit juice ,coffee drink, protein drinks , beer ,rice wine and so on ,with domestic technology leading level .The machines adopt the international popular design technology .Its design is scientific and reasonable , appearance is beautiful , operation and maintenance is convenient , and it is with high degree of automation .So it is the good machine choosing for middle and beginning factory .
Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc
| Main Technical parameters | |
| Model | NXGF24-24-8 |
| Produciton capacity(330ml) | 8000-9000 |
| Heads of Rinsing Filling & Capping | 24-24-8 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 4 |
| Total power(kw) | 4.18 |
| Overall dimensions(mm) |
3280x2420x3200 |
| Weight(kg) | 5000 |
Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
