Automatic Bottle Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF |

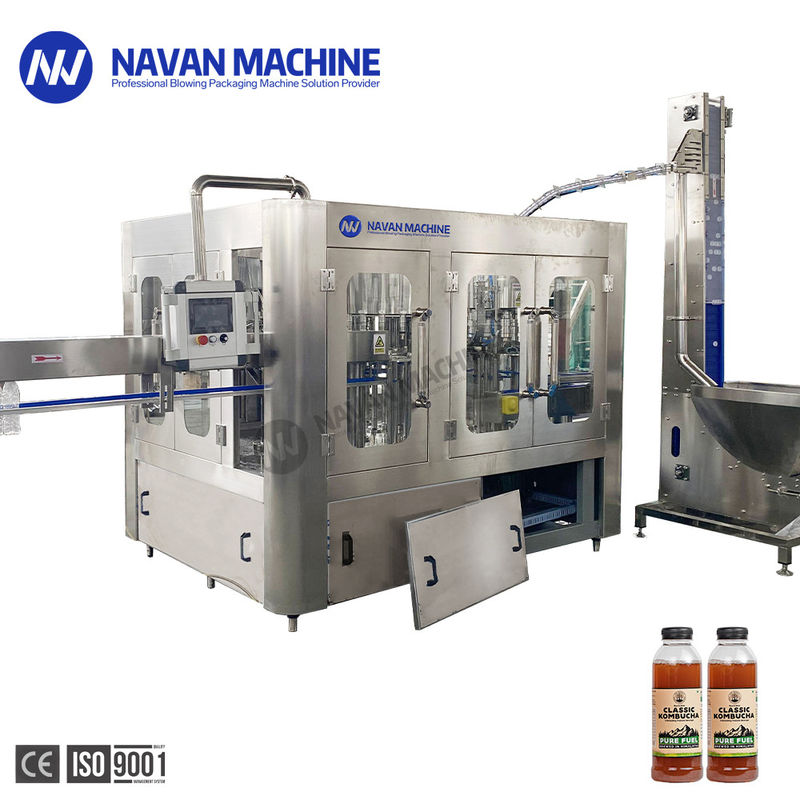

Automatic PET Bottled Kombucha Tea Washing Filling Capping Machine
CGF three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of tea , juice , non-carbonated drink etc.
Product Paramenters:
| Model | CGF24-24-8 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 24-24-8 |
| Production Capacity(500ml) | 10000-12000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 4.8kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 2780*2200*2200 |
| Weight (kg) | 4500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Working process:
Bottles are fed from air conveyor into three-in-one rinsing machine via star-wheel. Bottle clamp installed on the rotary wheel of the rinsing machine will grip bottle mouth and make 180º turn along a guide track to face the bottle mouth downward.
In designated section of the rinsing machine rinsing water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle mouth facing up.
Cleaned bottles are moved out of the rinsing machine by star-wheel. After entering the fill area, bottles are retained by neck supporting carrier plates which are actuated by bottle carrier mechanism to raise them to engage with filling valves.
Filling is completed by micro negative pressure. The material filled into the bottle through filling valve. The bottle goes down and leaves valve to capping machine via neck handling star-wheel.
Anti-rotation blades on capping heads will seize the neck of bottle to prevent it from rotation and hold it in up-right. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam.
Rinser Station:
Filler station
High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
All 304 stainless steel contact parts &
liquid tank, fine polish, easy to clean
No bottle no filling
Capper Station
Electric Part & Safe Device & Automation:
Machine Base & Machine Construction:
