Automatic Bottle Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | NXGF32-32-10 |

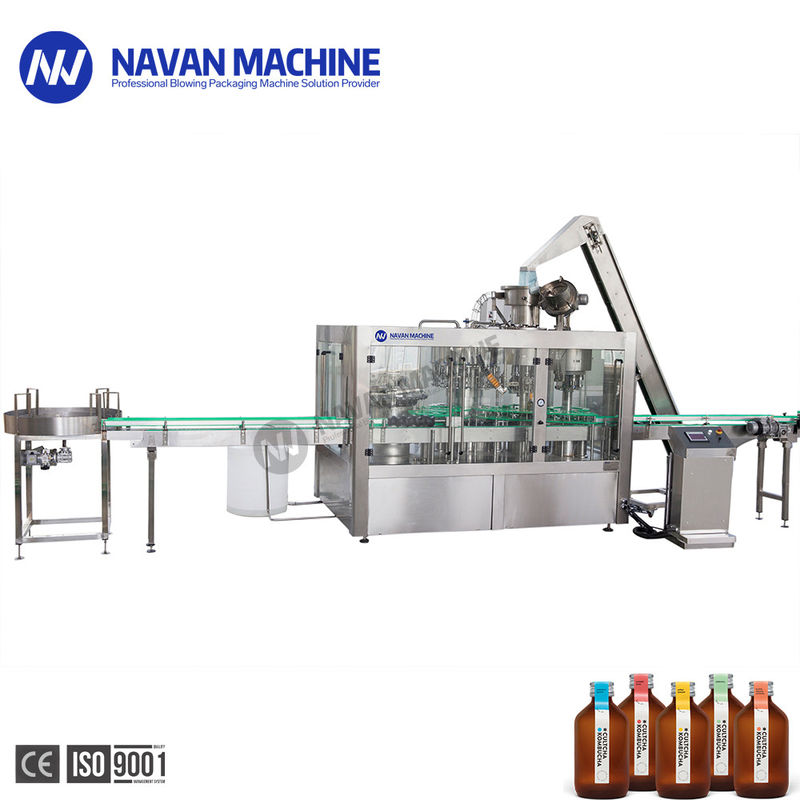

Full Automatic Liquid Kombucha Filling Bottling Machine For Glass Bottle
This machine is the introduction of foreign advanced technology design and manufacture of rinsing,filling,capping three in one machine. The filling valve is introduced from German company technology manufacturing, high precision manufacturing, filling level is accurate, small fluid loss, especially for high-speed filling; screw capping system is introduced from the French company technology.
Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc
| Main Technical parameters | |
| Model | NXGF32-32-10 |
| Produciton capacity(330ml) | 12000-13000 |
| Heads of Rinsing Filling & Capping | 32-32-10 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 7.5 |
| Total power(kw) | 7.68 |
| Overall dimensions(mm) |
4430x2880x3200 |
| Weight(kg) | 6800 |
Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
