Automatic Bottle Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF40-40-10/12 |

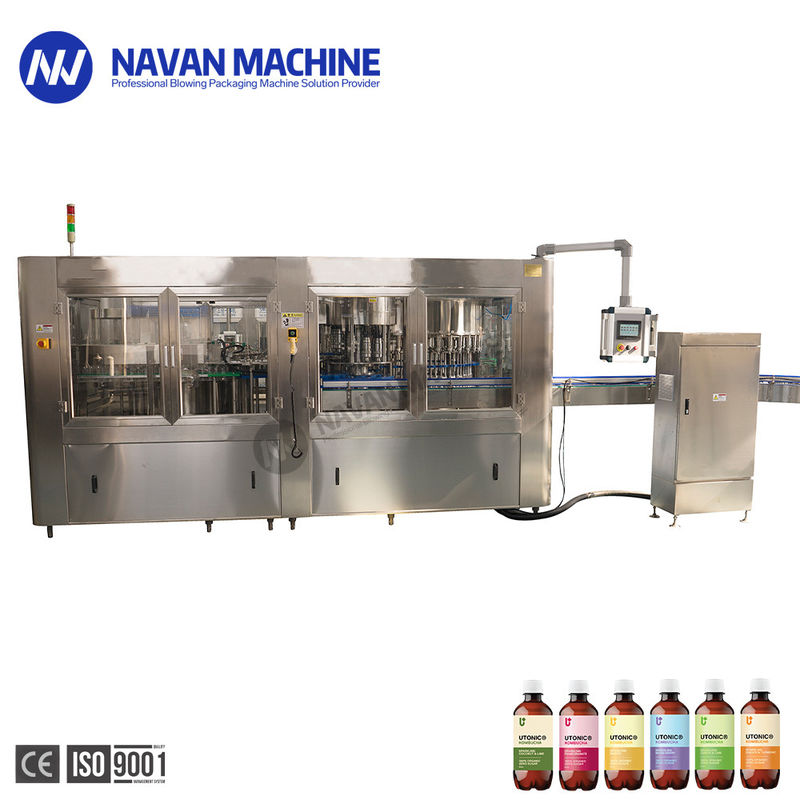

Automatic High Capacity PET Bottled Kombucha Filling Bottling Machine
This high capacity bottled drinking water filling machine for bottled water maker is mainly applied for filling drinking water / mineral water. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatic. It is suitable for PET bottle to fill drinking water, mineral water, pure water etc.
Product Paramenters:
| Model | CGF40-40-10/12 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 40-40-10/12 |
| Production Capacity(500ml) | 19000-20000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml
Diameterφ=50-115mm
Bottle height H=150 ~350mm
|
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 7.5kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 4600*2800*2600 |
| Weight (kg) | 8500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Rinser Station:
Filler station:
Capper Station:
