Vodka Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | NXGF18-18-6 |

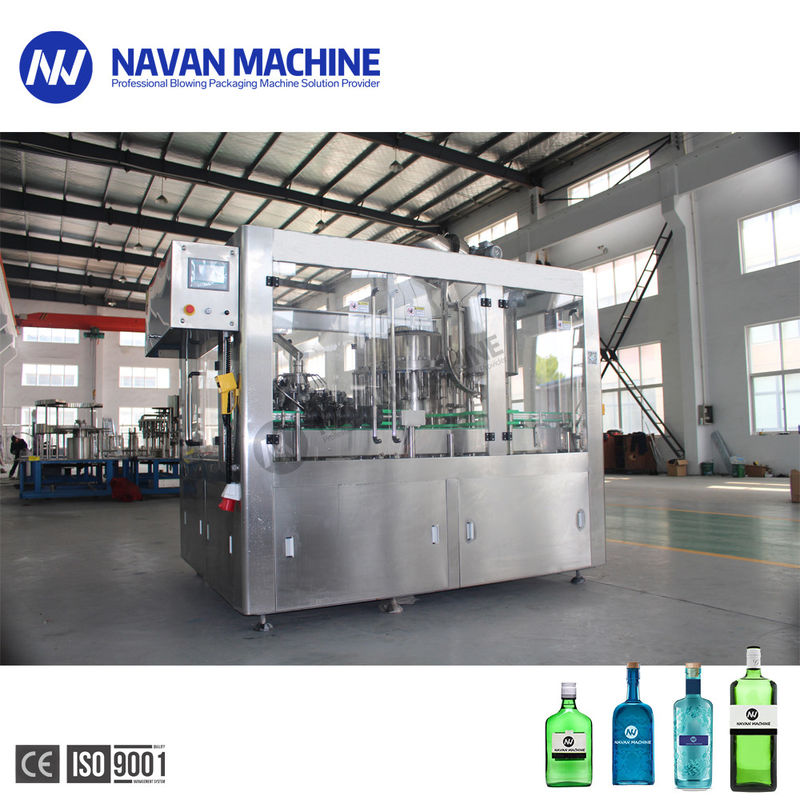

Monoblock 5000BPH Glass Bottle Vodka Washing Filling Capping Machine
This glass bottle filler and capper is developed on the base of digesting ,absorbing and improving the advanced technology introduced from all over the world , up to international level .This series of machines can meet the filling –sealing requirements of different sealing manners for capper ,T-cork , wooden cork capper ,screw capper etc , and can be applied to water ,carbonated soft drink ,fruit juice ,coffee drink, protein drinks , beer ,rice wine and so on ,with domestic technology leading level .The machines adopt the international popular design technology .Its design is scientific and reasonable , appearance is beautiful , operation and maintenance is convenient , and it is with high degree of automation .So it is the good machine choosing for middle and beginning factory .
Product Paramenters:
| Main Technical parameters | |
| Model | NXGF18-18-6 |
| Produciton capacity(330ml) | 4500-5000 |
| Heads of Rinsing Filling & Capping | 18-18-6 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 3 |
| Total power(kw) | 3.18 |
| Overall dimensions(mm) | 3012*2012*3260 |
| Weight(kg) | 3800 |
Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Glass Bottle Washing.
Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.
- Glass Bottle Filling
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
