Vodka Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | NXGF |

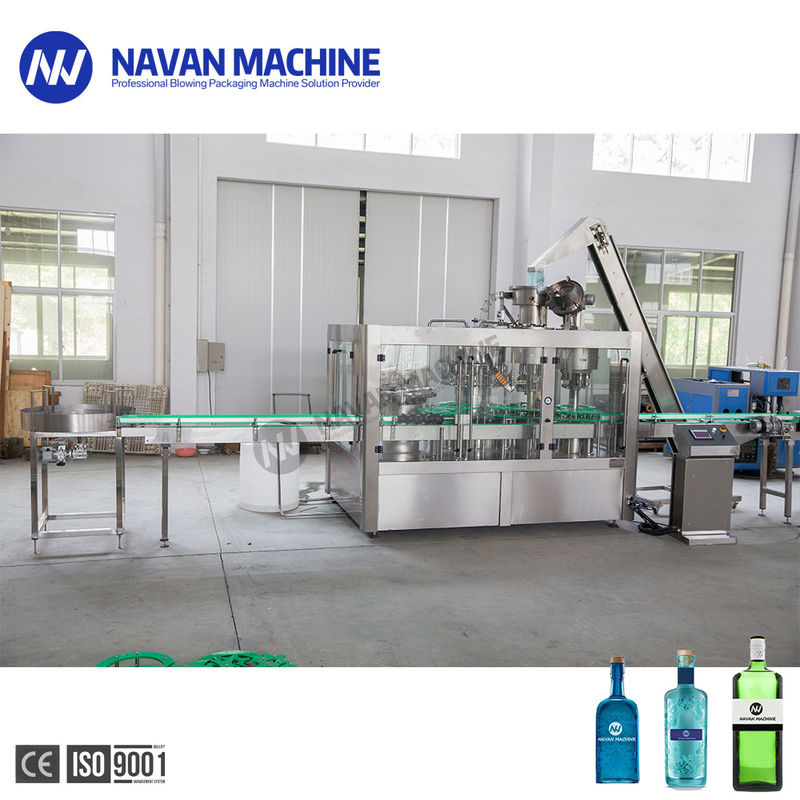

Automatic Glass Bottled Vodka Non-Carbonated Drink 3-In-1 Filling Machine
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
The machine for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated water and alcoholic drinks to be one of the advanced room filling production line.
Product Paramenters:
| Main Technical parameters | ||||||
| Model |
NXG F14-12-6 |
NXGF 18-18-6 |
NXGF 24-24-8 |
NXGF 32-32-10 |
NXGF 40-40-12 |
NXGF 50-50-15 |
| Produciton capacity(330ml) | 2500-3000 | 4500-5000 | 8000-9000 | 12000-13000 | 14000-15000 | 18000-19000 |
| Heads of Rinsing Filling & Capping | 14-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-12 | 50-50-15 |
| Suitable bottle height (mm) | 160-340 | |||||
| Suitable bottle diameter (mm) | 50 ~ 100 | |||||
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 | |||||
| Filling way | Micro negative pressure filling / gravity filling | |||||
| Filling temperature (℃) | 0~30 or customzied | |||||
| Filling pressure (MPa) | 0.15~ 0.5 | |||||
| Main motor power(kw) | 2.2 | 3 | 4 | 7.5 | 7.5 | 11 |
| Total power(kw) | 2.75 | 3.18 | 4.18 | 7.68 | 7.68 | 11.5 |
| Overall dimensions (mm) |
2700x150 0x2300 |
3012x201 2x3260 |
3280x242 0x3200 |
4430x288 0x3200 |
4650x320 0x3200 |
4987x3846 x3200 |
| Weight(kg) | 2800 | 3800 | 5000 | 6800 | 8800 | 11000 |
2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
