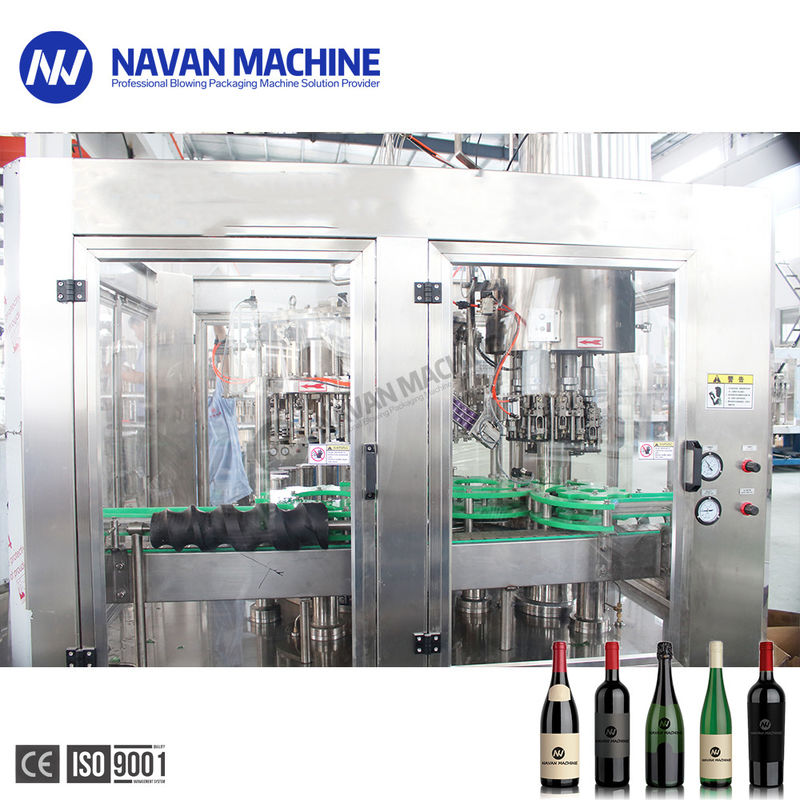

Auto 2-In-1 Glass Bottle Sparkling Drink Wine Filling Capping Machine
For the centering guide of our NPXGF glass bottle filling capping 2-in-1 unit, we adopt double guide-bar mechanism, with the function of pre-covering which allows stable and reliable bottle transferring.The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.
Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc
| Main Technical parameters | |
| Model | NPXGF18-6 |
| Produciton capacity(330ml) | 3000-5000 |
| Heads of Filling & Capping | 18-6 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Isobaric filling (twice vacuumized ) |
| Filling temperature (℃) | 0~5 |
| Filling pressure(MPa) | 0.15~ 0.5 |
Details of the Machine
- Glass Bottle Filling
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
