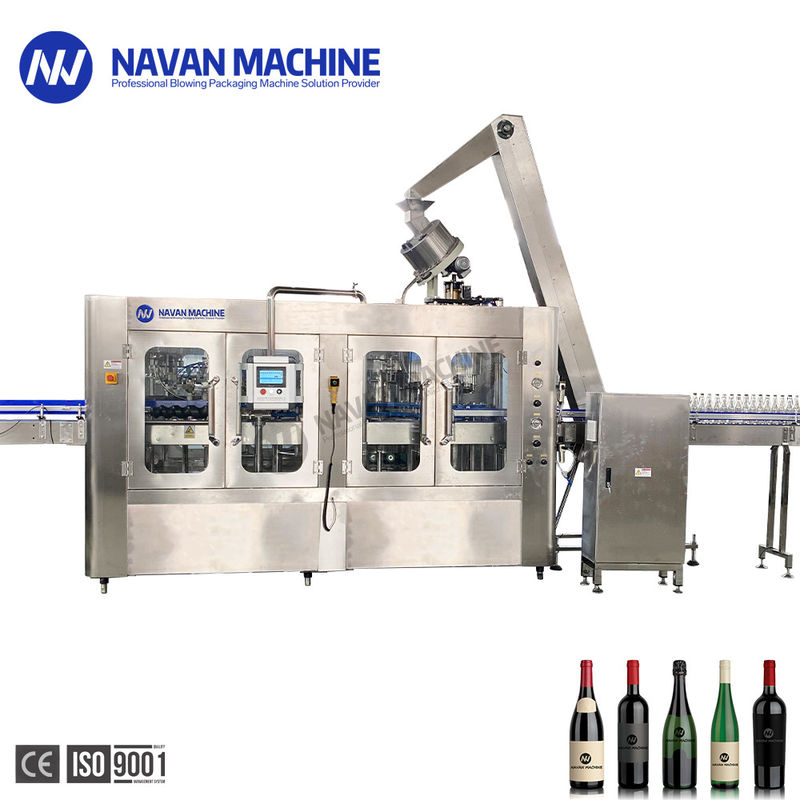

Small Glass Bottle 200-2000ml Wine Non-gas Beverage Filling Machine
This automatic wine filling machine is used to produce glass bottled wine, water and non-gas beverage etc.
Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc
| Main Technical parameters | |
| Model | NXGF50-50-15 |
| Produciton capacity(330ml) | 18000-19000 |
| Heads of Rinsing Filling & Capping | 50-50-15 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 11 |
| Total power(kw) | 11.5 |
| Overall dimensions(mm) |
4987x3846x3200 |
| Weight(kg) | 11000 |
Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
3 - Glass Bottle Washing.
The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water.
4 - Glass Bottle Filling
The filling valve opens and begins filling when it moves down and touches the bottle neck, the filling valve move up and leave the bottle neck when it finishes filling.
5-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
