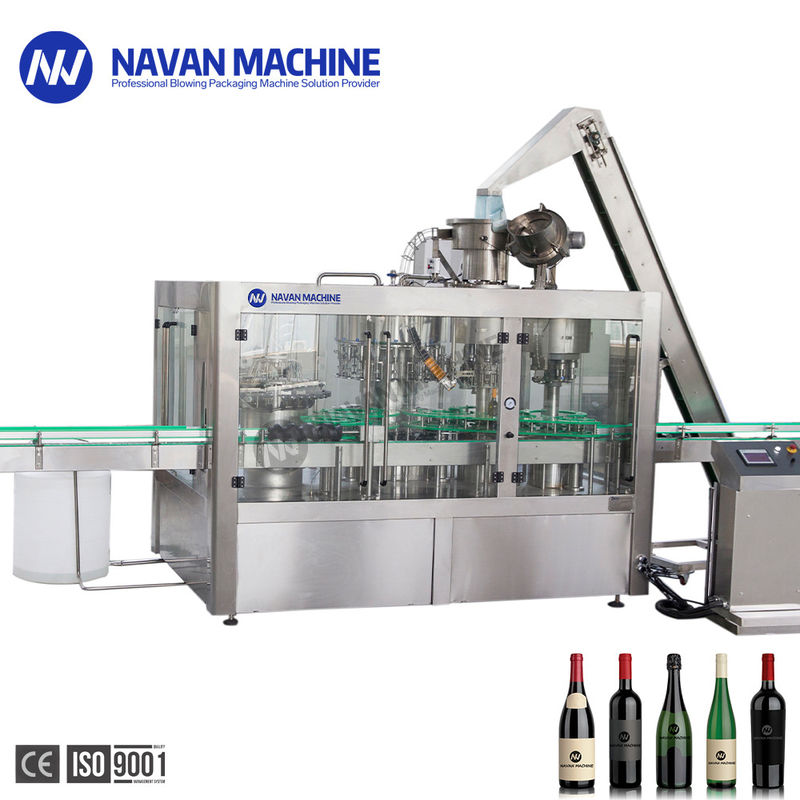

Automatic Glass Bottled Non-Carbonated Drink Wine Filling Machine
Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc
| Main Technical parameters | |
| Model | NXGF18-18-6 |
| Produciton capacity(330ml) | 4500-5000 |
| Heads of Rinsing Filling & Capping | 18-18-6 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Micro negative pressure filling / gravity filling |
| Filling temperature (℃) | 0~30 or customzied |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 3 |
| Total power(kw) | 3.18 |
| Overall dimensions(mm) | 3012x2012x3260 |
| Weight(kg) | 3800 |
Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
3 - Glass Bottle Washing.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
4 - Glass Bottle Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
5-Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
