Carbonated Drink Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGFD32-32-10 |

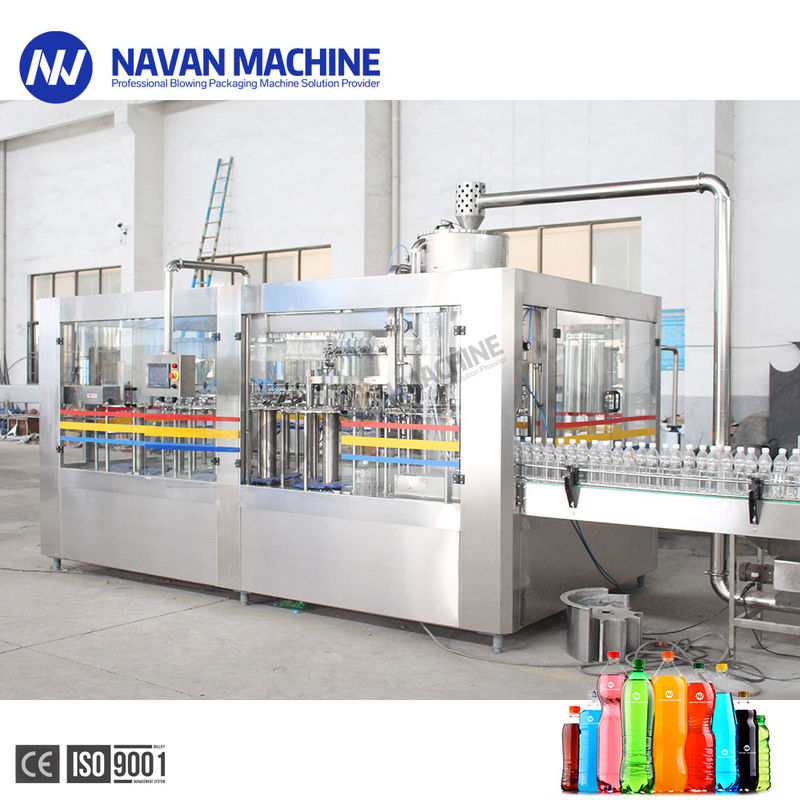

Auto 10000BPH 3 In 1 Soda Water Carbonated Drink Filling Bottling Machine
Carbonated soft drink/water/beverage filling machine is specially designed for small to medium scale production of both still and carbonated soft drinks such as coca cola, spirit, soda water, etc in PET bottles ranging in size from 0.2 to 2 liters, integrating rising, filling and capping into one. Features include the sturdy base is supported by adjustable feet and is made with stainless steel sheathing secured to the tubular frame, all contact parts of liquid are food grade stainless steel and plastics, unique bottle neck suspend system makes bottle move smoothly and minimizes down time from one to another size, equipped with the latest counter pressure filling nozzles for precise filling, pick and place capping system, Critical electronic components and PLC controls are made by Siemens, Mitsubishi and Omron etc, All production information and automation controls are displayed digitally.
Product Paramenters:
| Model : | CGFR32-32-10 |
| Production Capacity(500ml): | 10000BPH |
| Bottle /standard: | PET bottle |
| Applicable bottle: |
Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm
|
| Air source pressure(Mpa): | 0.5-0.6 |
| User Ambient Conditions: |
Temperature:10~40℃;Humidity: No dew
|
| Power: | Main motor 7.6kw |
| Overall Dimensions: | 3800*2800*2600mm |
| Weight : | 6500kg |
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Competitive Advantage:
1. This series equipment is used in producing all kinds of soda drink contained with polyester bottle. Washing, filling, sealing can be carried out on the same machine. The design of the machine is scientific and reasonable. The appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high.
2. The advanced technology from Germany and Italy are employed. The speed of filling is fast and the liquid amount is controlled accurately. The filling device can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing technology is used in the system.
3. Pneumatic value and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed. The caps can’t be damaged, the capping is reliable.
5. Horizon swirl air power caps sorting device is used to avoid damaging the surface of caps, and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
6. The whole machine is controlled by PLC with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or caps are not available, the machine can be stopped automatically.
