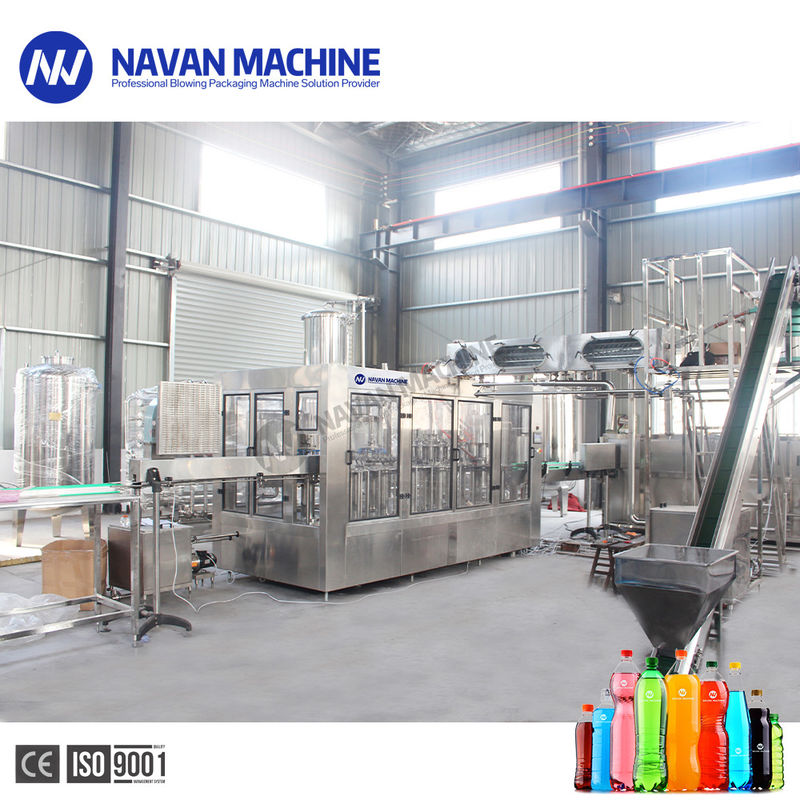

60 Heads Monoblock 3 In 1 PET Bottle Carbonated Drink Filling Machine Line

Product Paramenters:

CGFR50-50-12/15 Specifications

Product Description

Washing Parts.
1)Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
2)The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
3)The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
4)The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
5)Rinsing time can be guaranteed for 4 seconds.
6)By adjusting the height of the rotary parts to adapt for different bottle height.
7)The motivation is derived from the driven system in the framework passed by gear.
8)The supplying of rinsing water is controlled by solenoid valve.

Filling Parts.
1. Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
2. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area ,engine base is stainless steel contain carbon steel.
3. Guide bottle system, simple structure, according to bottle style, can change.
4. No bottle , no filling.
5. The whole machine can be controlled automatically by PLC.
6. The liquid level reaches the end of filling pipe, when the air circuit is cut off and the liquid stops the flow, and changes the filling pipe length can change filling lever height.
7. Level height can be adjusted , bought from Nanjing , the best valve in China.
8. The machine important parts and electrical elements is import brand.
9. The rod of the exhaust valve is pushed by the exhaust cam to gradually discharge the remaining compressed air from the upper part of the bottle into the atmosphere to ensure no foaming when the bottle is removed from the filling valve.
10.The filling system can connect a CIP circulation system to wash the pipeline .This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

Capping Parts.

This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality. Characteristic of the screwing capper as follows:
1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.
3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing by cap loading system.
4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
5) A bottle inlet detect switch is settled on the screwing capper.
6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
7) By adjusting the height of the rotary parts to adapt for different bottle height.
8) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
9) The main parts of the screwing capper are processed by the digital-control processing center.

Why Choose our Machine

This 3 in 1 carbonated juice drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment.

It is suitable for packing beverage containing gas. Its performance is as below: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature. Using programmable controller to realize fully automatic control from bottles entering to packing finished.

Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure the beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
