Carbonated Drink Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGFD32-32-10 |

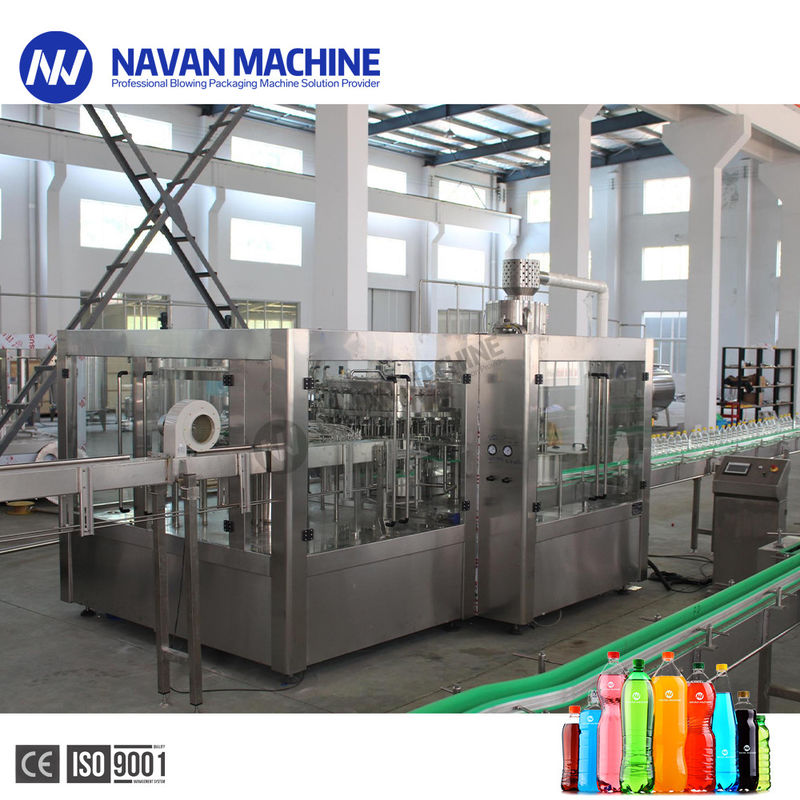

Automatic 100-2000ml PET Bottle Soft Sparkling Drink Filling Machine
The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Product Paramenters:
| Model : | CGFR32-32-10 |
| Production Capacity(500ml): | 10000BPH |
| Bottle /standard: | PET bottle |
| Applicable bottle: |
Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm
|
| Air source pressure(Mpa): | 0.5-0.6 |
| User Ambient Conditions: |
Temperature:10~40℃;Humidity: No dew
|
| Power: | Main motor 7.6kw |
| Overall Dimensions: | 3800*2800*2600mm |
| Weight : | 6500kg |
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
