Carbonated Drink Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGFD24-24-8 |

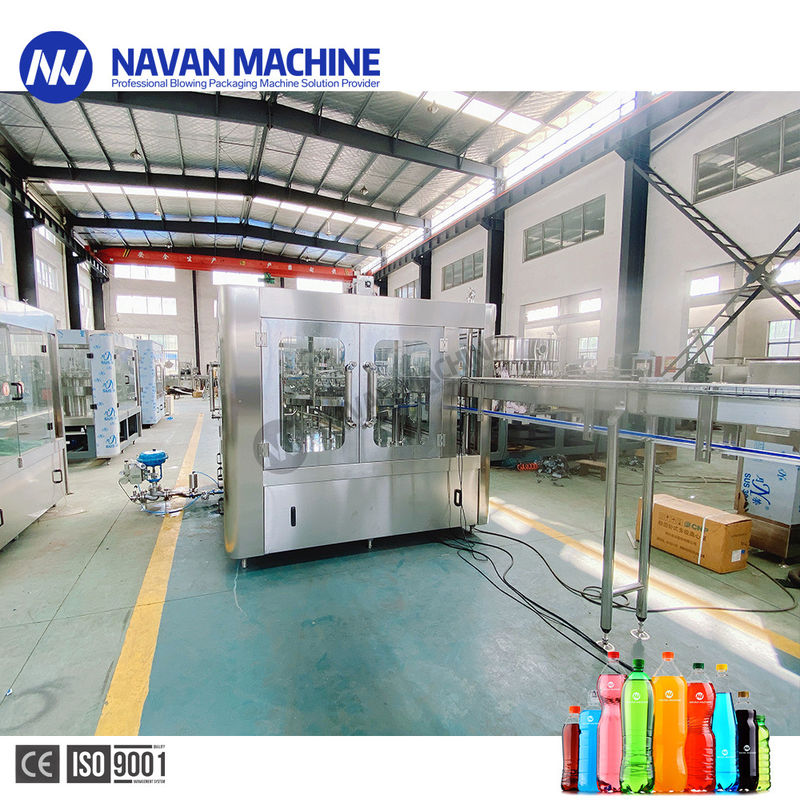

Complete Automatic PET Bottle Carbonated Soft Drink Filling Bottling Machine
This 3 in 1 carbonated juice drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment.
It is suitable for packing beverage containing gas. Its performance is as below: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature. Using programmable controller to realize fully automatic control from bottles entering to packing finished.
Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure the beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
Product Paramenters:
| Model : | CGFR24-24-8 |
| Production Capacity(500ml): | 8000BPH |
| Bottle /standard: | PET bottle |
| Applicable bottle: |
Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm
|
| Air source pressure(Mpa): | 0.5-0.6 |
| User Ambient Conditions: |
Temperature:10~40℃;Humidity: No dew
|
| Power: | Main motor 4.8kw |
| Overall Dimensions: | 2780*2200*2200mm |
| Weight : | 4500kg |
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
