Carbonated Drink Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGFD18-18-6 |

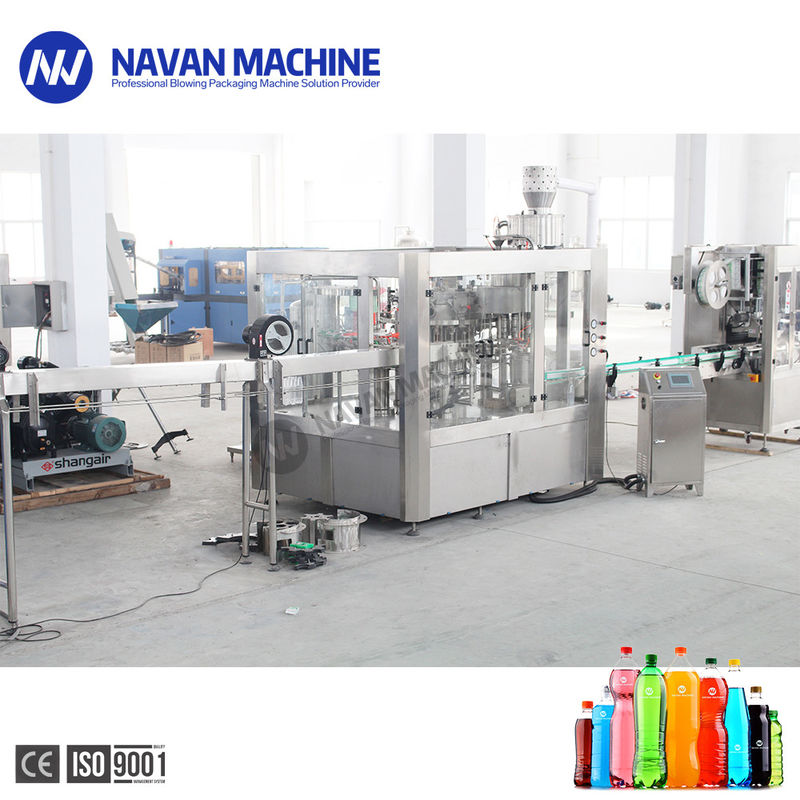

Monoblock Carbonated Soft Drink Rinsing-Filling-Capping Machine For PET bottle
Product Paramenters:
| Model | CGFD18-18-6 |
| Application | Soda water , sparkling water , Govas, cola etc ...carbonated drink |
|
Number of washing,filling& capping heads |
18-18-6 |
|
Production capacity(500ml) |
4000 |
| Filling precision | ≤±5mm(liquid level) |
|
User Ambient Conditions |
Temperature:10~40℃; Humidity: No dew |
|
Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style |
Plastic Screw Cap φ=20-50 |
| Machine material | Food stage SS304 OR SS316 |
|
Air source pressure(Mpa) |
0.5-0.6 |
| Filling way/principle | Isobaric filling |
| Motor power(kw) | Main motor 4.0kw |
| Control System | SIMENS PLC+ TOUCH SCREEN |
| Features |
No Bottle No Filling No Bottle No Capping |
| Power Supply |
Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement |
|
Overall dimensions(mm) |
2580*2100*2200 |
| Weight (kg) | 3500 |
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
1.installation&commissioning
After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed
2.Quality assurance
The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
3.Training
We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.
