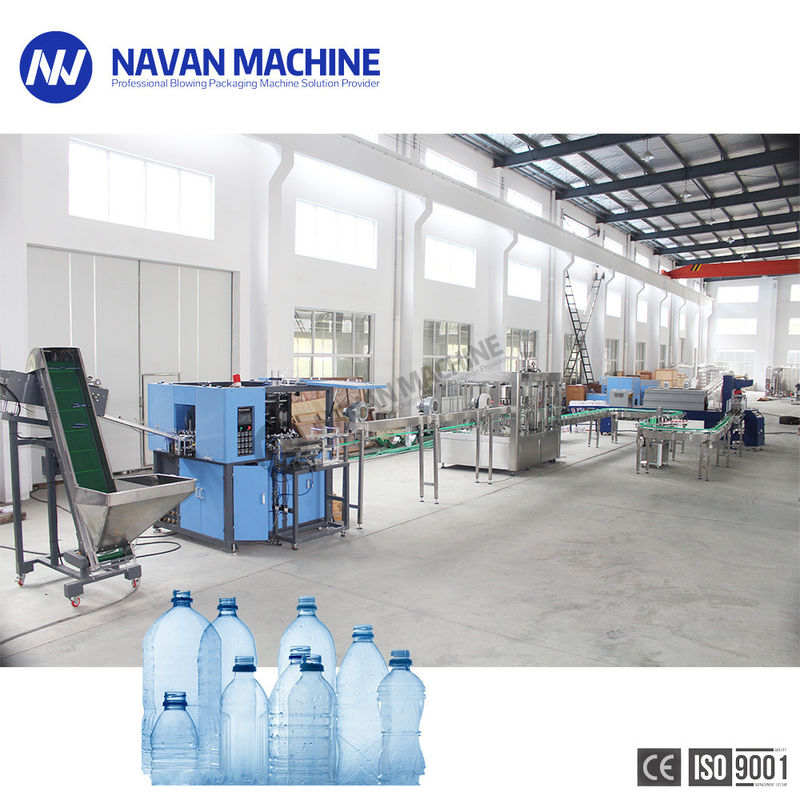

Water Filling Machine Automatic Plastic Bottle Pure Water Bottling Packing Machine

The machine is primarily used for filling beverages, specifically mineral water and purified water, in polyester and plastic bottles. It incorporates washing, filling, and sealing processes, achieving complete automation. It is designed to be easily adjustable for different bottle types, allowing for convenient and rapid changes. The machine utilizes a new micro-negative pressure filling method, ensuring stability and reliability. In comparison to similar machines, this machine offers greater benefits.

CGF40-40-10 Specifications

Rinser Station:

The empty bottles can be turned over 180°along the conveying rail. The machine applies unique overturning bottle clamp,which is made of SUS304. The bottle clamp grips bottle at the neck position, avoiding bottle mouth contamination. The bottle clamp equipped with high efficient spray nozzle,which spray droplet with 15° angle ,ensures to wash all side of the bottle, and can save the water. The rinser is driven by driving system inside the machine frame via gear.

Filler station:

Filling valves and tank are made of stainless steel SUS304 Gravity filling. Ring shape tank with float ball level control. High speed and high accuracy filling valve with 150ml/s flowing speed Bottles go up and down in the function of cam through elevator to process filling Large flat bearing inside the machine frame,stable and reliable performance.

Capper Station:

In the screw capping part,it installed photoelectrical control,when it has no cap,or the cap is bad,the machine will stop automatically. Magnetic constant torque capping head ensures stability and controls defective rate less than 0.2%. Cap dropping rail equips a group of photoelectrical switch for reverse cap detecting.When lack of cap,machine will stopp automatically. Bottle infeed detecting switch works with the pneumatic cylinder on cap starwheel to avoid feeding cap on no-bottle condition.
