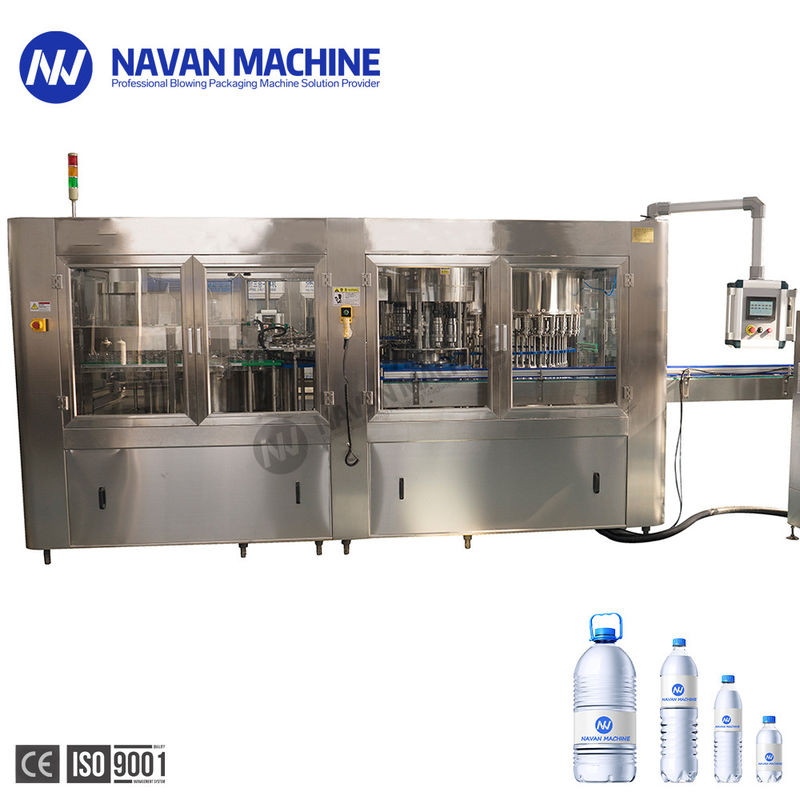

Automatic 40 Heads Rotary Bottle Rinsing Filling Capping Machine

Automatic 40 Heads Rotary Drinking Water Rinsing Filling Capping Machine

This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefits.

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

Product Paramenters:

Rinser Station:

• Into bottle way is air conveyor direct connection with bottle dial.
• All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
• 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
• 304/316 stainless steel washing pump make the machine more durable.

Filler station

• - 304/316 Stainless steel high precision filling nozzle
• - Filling volume adjustable in fine rank, same liquid level after filling
• - All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
• - 304/316 stainless steel filling pump
• - Efficient spray nozzle rinse thoroughly and save water for flushing

Capper Station

• - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
• - All 304/316 stainless steel construction
• - No bottle no capping
• - Automatic stop when lack of bottle
• - Capping effect is stable and reliable, Defective rate ≤0.2%

Electric Part & Safe Device & Automation:

• When accident system automatic stop & alarm
• Emergency switch when accident
• PLC , Touch-screen Control Panel & inverter
• Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Base & Machine Construction:

• 304 stainless steel frame
• Tempering Glass window, Clear & no odor
• Excellent start wheel design, easy change over parts
• Machine Base with anti-rust process, ensure the forever antirust
• All seal where liquid may Leakage & base neck come with rubber, water proof
• Manual lubrication system
