Automatic Water Filling Machine
>
|
|
| Place of Origin | Jiangsu province China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF8-8-4 |

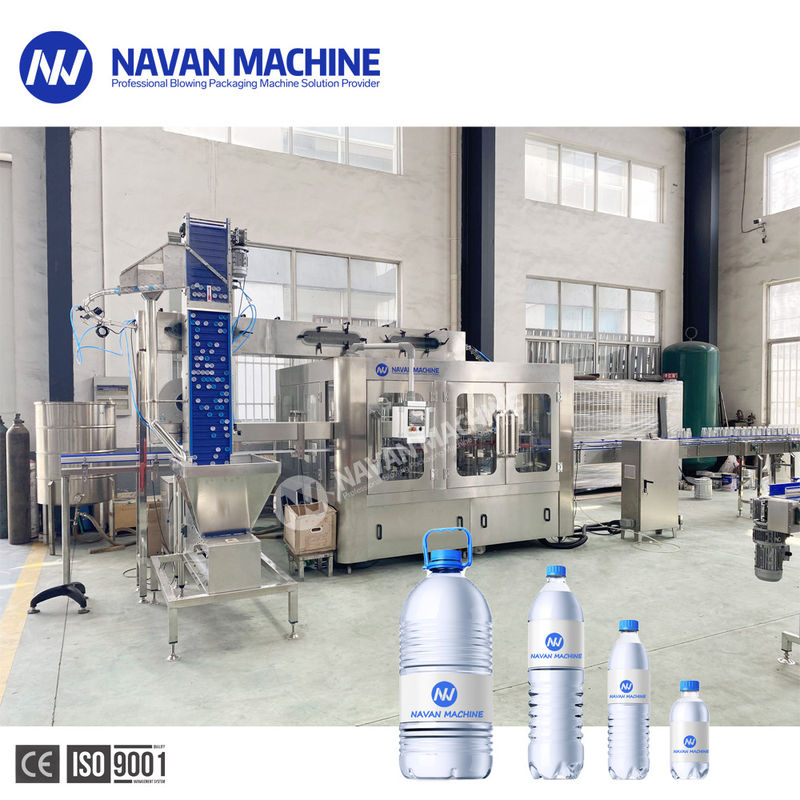

Automatic Small Scale PET Plastic Bottle Water Filling Machine For Drinking Water
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
Product Paramenters:
| Model | CGF8-8-4 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 8-8-4 |
| Production Capacity(500ml) | 2500-3000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 1.9kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 1900*1420*2000 |
| Weight (kg) | 1500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Filling Parts
Filling volume adjustable in fine rank, same liquid level after filling.Efficient spray nozzle rinse thoroughly and save water for flushing.
