Automatic Water Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF24-24-8 |

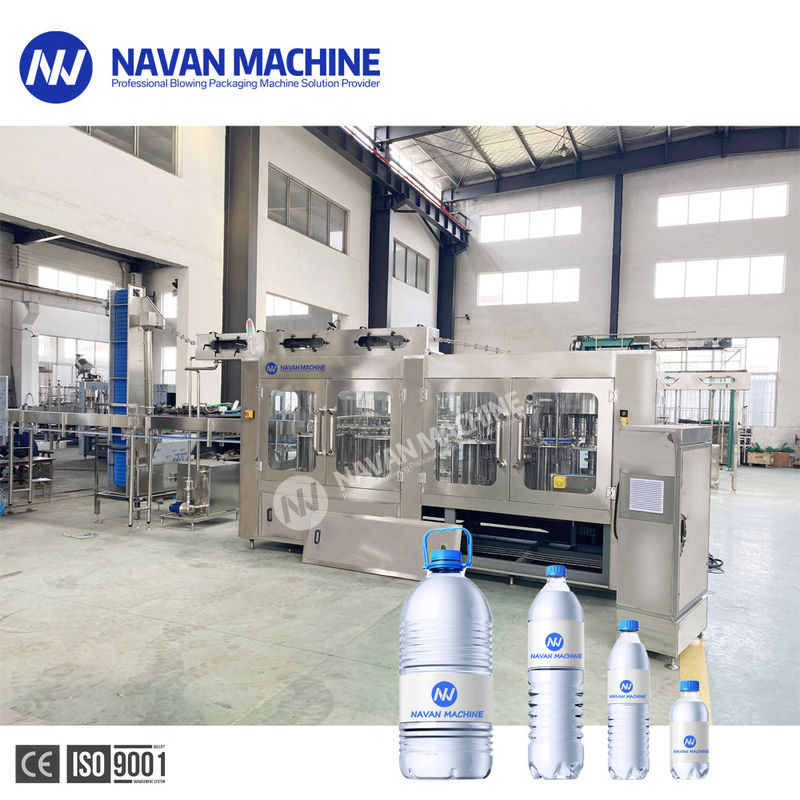

Full Automatic Mineral Water Production Line Water Bottling Filling Machine
Our recently developed CGF series monoblock water filling machine is tailor-made for plastic bottle filling. It accommodates PET bottles ranging from 150ml to 2000ml and can be customized up to a maximum capacity of 3000ml. The advanced capping design enables hassle-free interchangeability of various screw caps using a user-friendly tool. With just three bearing support points on the machine's surface, drainage becomes effortless, eliminating any concerns of dirt or stains. Additionally, the A11 bearing features a waterproof seal to safeguard it against rusting.
Product Paramenters:
| Model | CGF24-24-8 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 24-24-8 |
| Production Capacity(500ml) | 10000-12000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 4.8kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 2780*2200*2200 |
| Weight (kg) | 4500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Rinser Station:
Filler station
High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
All 304 stainless steel contact parts &
liquid tank, fine polish, easy to clean
No bottle no filling
Capper Station
Electric Part & Safe Device & Automation:
Machine Base & Machine Construction:
Company introduction:
As a manufacturing company, our focus lies in the production of beverage packaging equipment and a diverse range of water treatment equipment. We take great pride in our esteemed reputation among both domestic and international clientele.
Currently, our product portfolio encompasses an array of production lines catering to mineral water, pure water, fruit juice, tea drinks, milk drinks, and carbonated beverages. These production lines boast capacities spanning from 1000 to 20000 bottles per hour. Furthermore, we offer specialized production lines tailored for vinegar, soy sauce, wine, as well as 3-5-gallon barrelled water, with a capacity of 80-120 barrels per hour. Additionally, our lineup includes an assortment of water treatment plants to cater to various needs.
