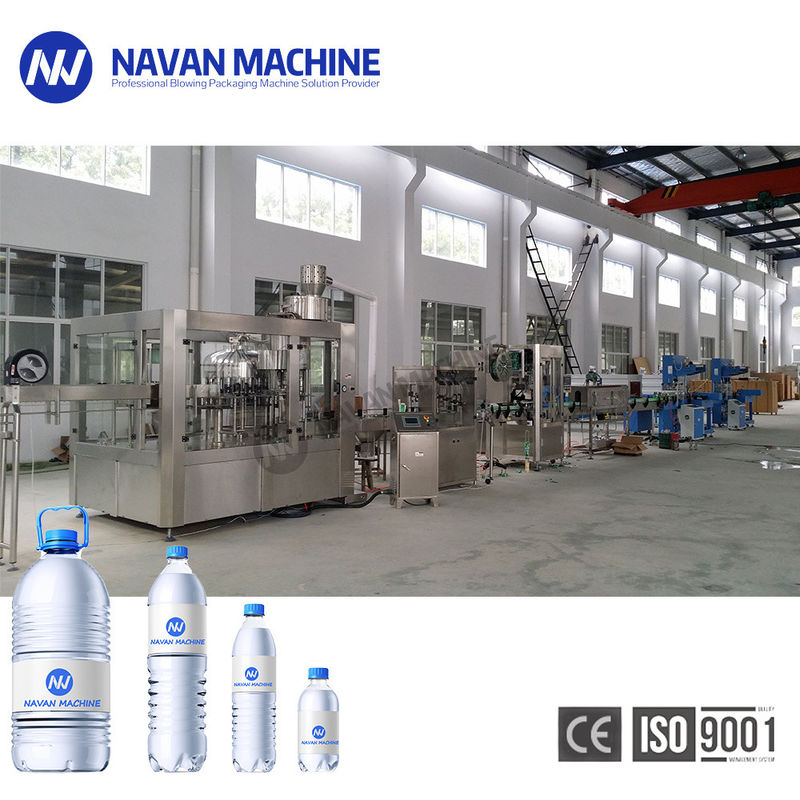

Automatic 300-2000ml Water PET Bottled Filling 3 In 1 Machine
CGF series of machines are full-automatic multiple-function washing , filling, capping unit . It is used in washing ,filling ,capping all kinds of non-gas drink, such as vinegar ,wine, fruit wine, mineral water , pure water . This filling and packing equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing ,filling ,capping .Most of elements of the electric system employ famous brand products .The machines parts contact the liquid are made of high quality stainless steel .They obtain the advantages of good abrasive resistance , high stability ,low failure rate ,etc. The quality of the equipment reach the international advanced level and gained good reputation among our clients .
Product Paramenters:
| Model | CGF40-40-12 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 40-40-12 |
| Production Capacity(500ml) | 19000-20000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 7.5kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 4600*2800*2600 |
| Weight (kg) | 4500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Filling Parts
Filling volume adjustable in fine rank, same liquid level after filling.Efficient spray nozzle rinse thoroughly and save water for flushing.
