Carbonated Drink Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGFD40-40-10/12 |

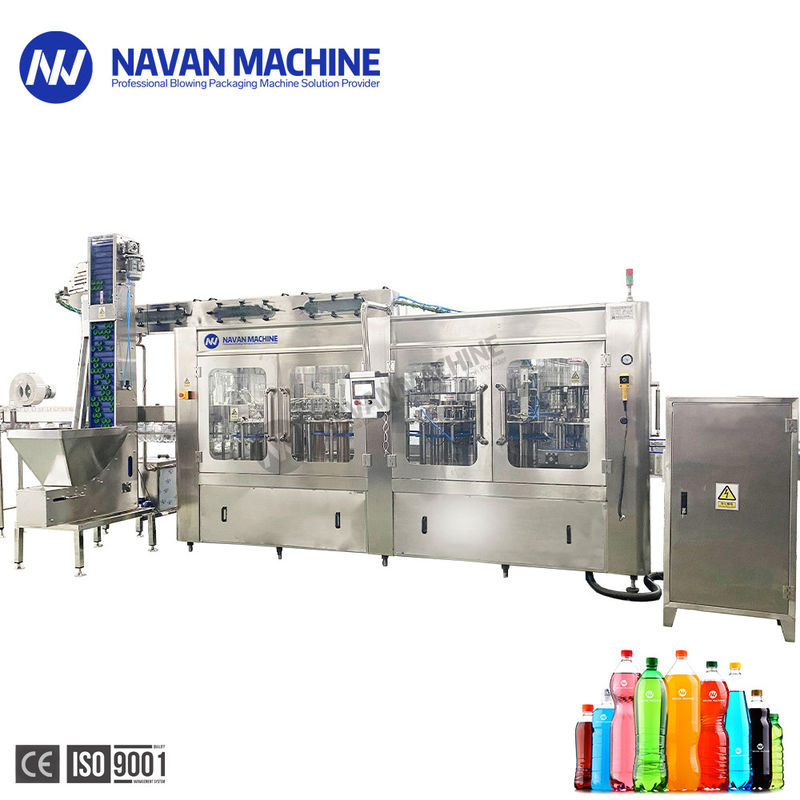

Full Automatic Soft Carbonated Drink Filling Bottling Machine For PET bottle
This washing filling capping machine is mainly used for Carbon dioxide drink, such as cola, soda water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.
Product Paramenters:
| Model | Washing heads |
Filling heads |
Capping heads |
Weight | Overall dimension(mm) |
| CGFR8-8-4 | 8 | 8 | 4 | 1500kg | 1900*1420*2000 |
| CGFR12-12-5/6 | 12 | 12 | 5/6 | 2500kg | 2050*1800*2400 |
| CGFR18-18-6 | 18 | 18 | 6 | 3500kg | 2580*2100*2200 |
| CGFR24-24-8 | 24 | 24 | 8 | 4500kg | 2780*2200*2200 |
| CGFR32-32-10 | 32 | 32 | 10 | 6500kg | 3800*2800*2600 |
| CGFR40-40-10/12 | 40 | 40 | 10/12 | 8500kg | 4600*2800*2600 |
| CGFR50-50-12/15 | 50 | 50 | 12/15 | 9800kg | 5450*3300*2600 |
| CGFR60-60-15 | 60 | 60 | 15 | 12800kg |
6500*4500*2600
|
| You can also customize the size you need. | |||||
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
