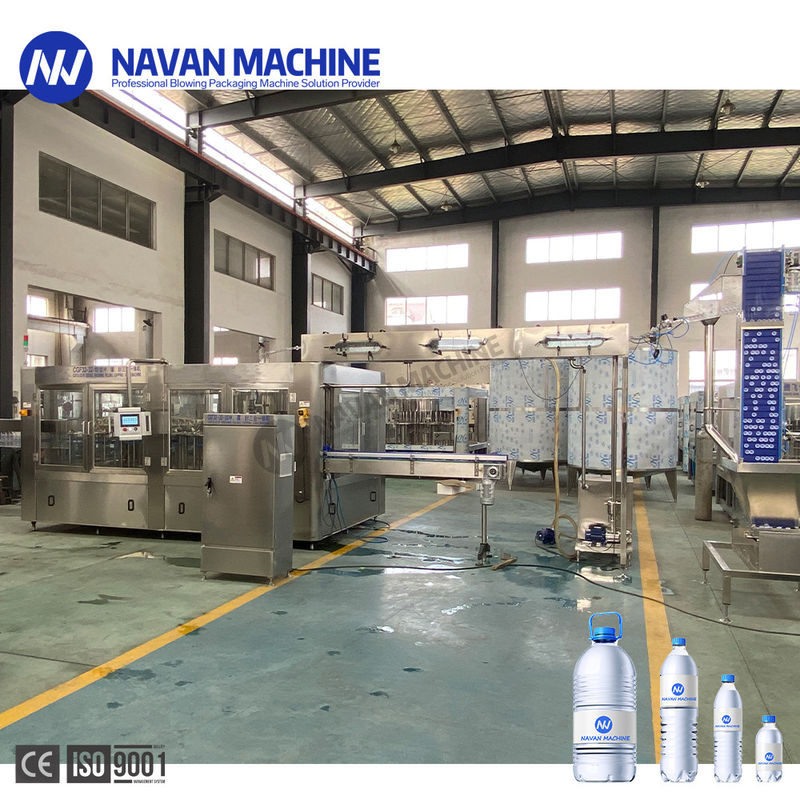

Complete Automatic Liquid PET Bottles Non Carbonated Drink Water Filling Machines

Complete Automatic Liquid PET bottles Non-Carbonated Drink Water Filling Machines

Applications:

PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.

Product Paramenters:

Features :

This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.

This machine is used to fill juice and noncarbonated drink into pet bottle and with screw caps capping

function.

This machine integrated three function:

1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

Rinser Station:

• All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
• 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
• 304 stainless steel washing pumps

Filler station

High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

All 304 stainless steel contact parts &

liquid tank, fine polish, easy to clean

No bottle no filling

Capper Station

• Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
• All 304stainless steel construction
• No bottle no capping

Electric Part & Safe Device & Automation:

• When accident system automatic stop & alarm
• Emergency switch when accident
• PLC , Touch-screen Control Panel & inverter
• Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Base & Machine Construction:

• 304 stainless steel frame
• Tempering Glass window, Clear & no odor
• Excellent start wheel design, easy change over parts
• Machine Base with anti-rust process, ensure the forever antirust
• All seal where liquid may Leakage & base neck come with rubber, water proof
• Manual lubrication system
