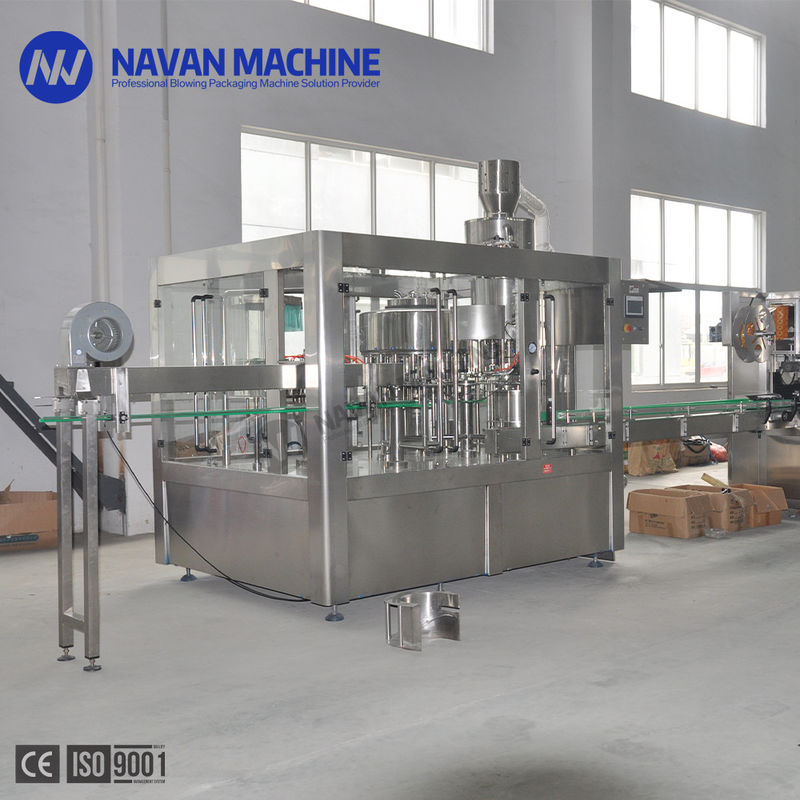

Full Automatic Small PET Plastic Bottled Water Washing Filling Capping Machine
CGF24-24-8 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure
water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Product Paramenters:
| Model | CGF24-24-8 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 24-24-8 |
| Production Capacity(500ml) | 10000-12000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 4.8kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 2780*2200*2200 |
| Weight (kg) | 4500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Rinser Station:
Filler station
High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
All 304 stainless steel contact parts &
liquid tank, fine polish, easy to clean
No bottle no filling
Capper Station
Electric Part & Safe Device & Automation:
Machine Base & Machine Construction:
