Automatic Water Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF18-18-6 |

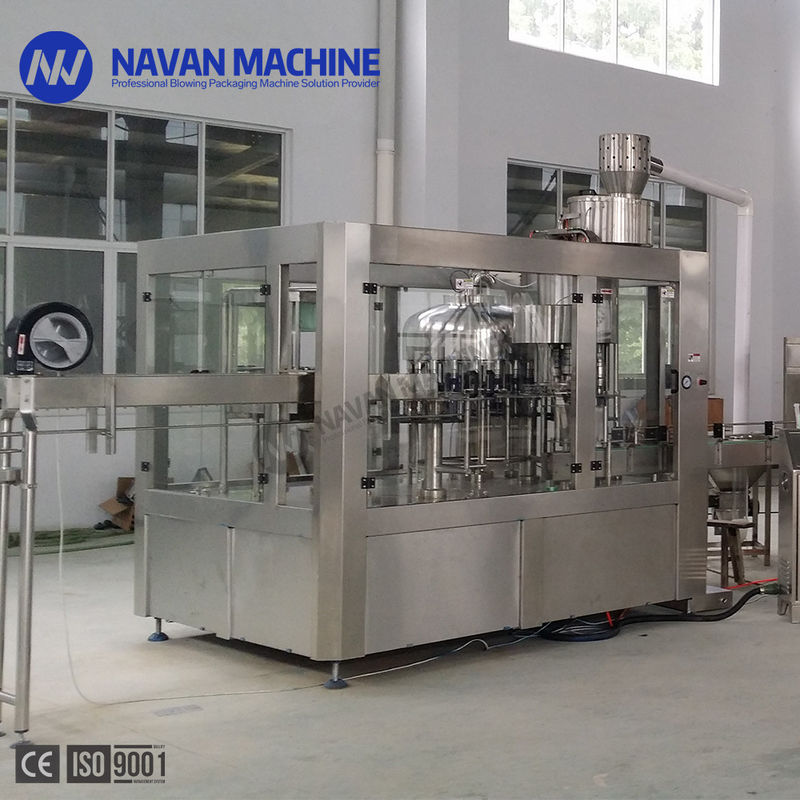

Automatic 0-2L PET Bottled Pure Mineral Water Filling Bottling Machine
This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefits.
Product Paramenters:
| Model | CGF18-18-6 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 18-18-6 |
| Production Capacity(500ml) | 6000-7000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml
Diameterφ=50-115mm
Bottle height H=150 ~350mm
|
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 4.0kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 2580*2100*2200 |
| Weight (kg) | 3500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Rinser Station:
Filler station
Capper Station
Electric Part & Safe Device & Automation:
Machine Base & Machine Construction:
