Automatic Water Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGF8-8-4 |

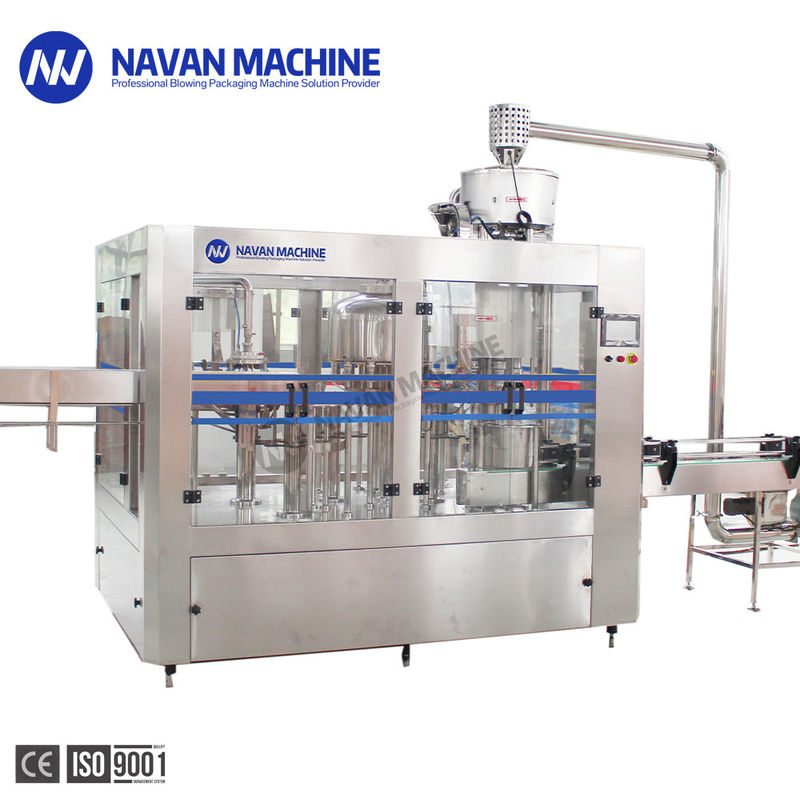

Automatic 3-in-1 Monoblock PET Bottled Pure Water Filling Machine
CGF8-8-4 three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of tea , juice , non-carbonated drink etc.
Product Paramenters:
| Model | CGF8-8-8-3/4 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 8-8-3/4 |
| Production Capacity(500ml) | 2000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2000ml Diameter φ=50-100mm Bottle height H=150 ~340mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 1.9kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 1900*1420*2000 |
| Weight (kg) | 1500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Features :
This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This machine is used to fill juice and noncarbonated drink into pet bottle and with screw caps capping
function.
This machine integrated three function:
1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
Rinser Station:
Filler station
High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
All 304 stainless steel contact parts &
liquid tank, fine polish, easy to clean
No bottle no filling
Capper Station
Electric Part & Safe Device & Automation:
Machine Base & Machine Construction:
