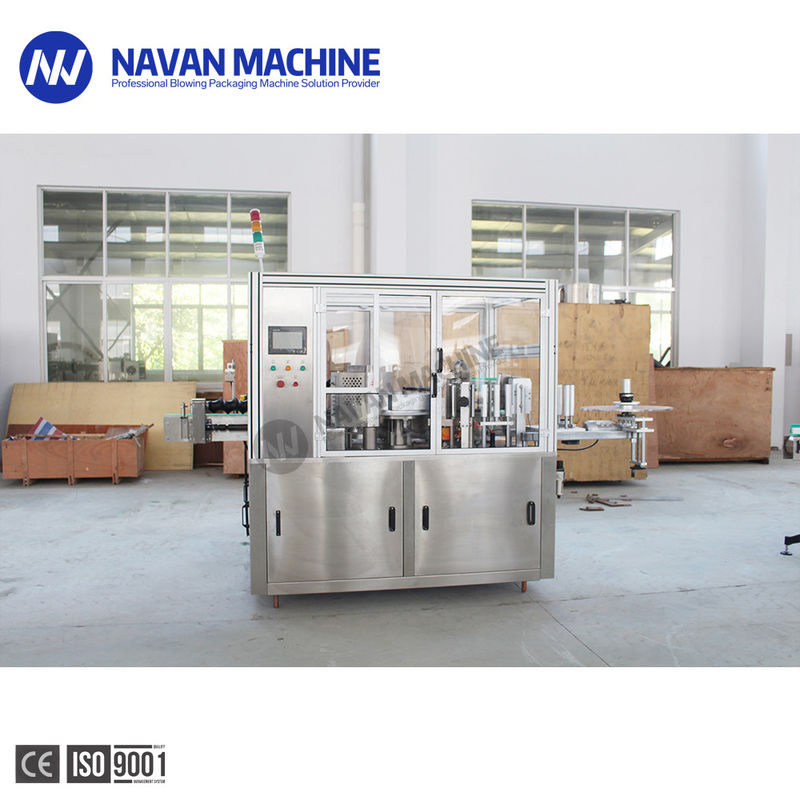

Linear Hot Melt Glue OPP Labeling Machine For Liquid Beverage Packaging Line
General description:
BOPP labeling machineis widely suitable for different material of container and label. The label cost is comparatiely lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.
Technical parameters:
| Power supply | Three-phase 380V 50 Hz 4KW |
| The total length of equipment | 3615mm (conveyor length can be regulate base on your product lines) |
| Equipment width | 2031mm |
| Conveyor speed | 30m/min (the speed of the transmission lines can be adjusted according to actual production) |
| The method of speed adjustment | uninterrupted - adjust rate |
| The largest Speed of labels feed | maximum speed of 90 meters labels / min |
| The largest speed of labeling | 12000~13000BPH (EP-0412R) |
| Labeling accuracy | ± 1mm |
| Integrated Labeling accuracy | ± 1mm |
| Product Size: base on client supply container | 2L Φ 100mm |
| Maximum label width | 135mm |
| The maximum length of label | 500mm |
| The maximum diameter of label | 600mm |
| Paper core diameter | 152 mm |
| Labeling glue | leading and trailing edge gluing with hot melt |
| Gluing temperature | 120~160C |
| Type of label | opp label, paper-plastic composite film label, paper label |
| Labeling workstation | 12 per cycle |
| The quantity of labeling mold | one suit (to be satisfied with one product, each mold contains infeed worm ,infeed starwheel ,discharge starwheel, position bottle and so on ) |
| Machine weight | 2600 Kg |
Detailed Images:
