Edible Oil Filling Machine
>
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE ISO |
| Model Number | Oil NPF Series |

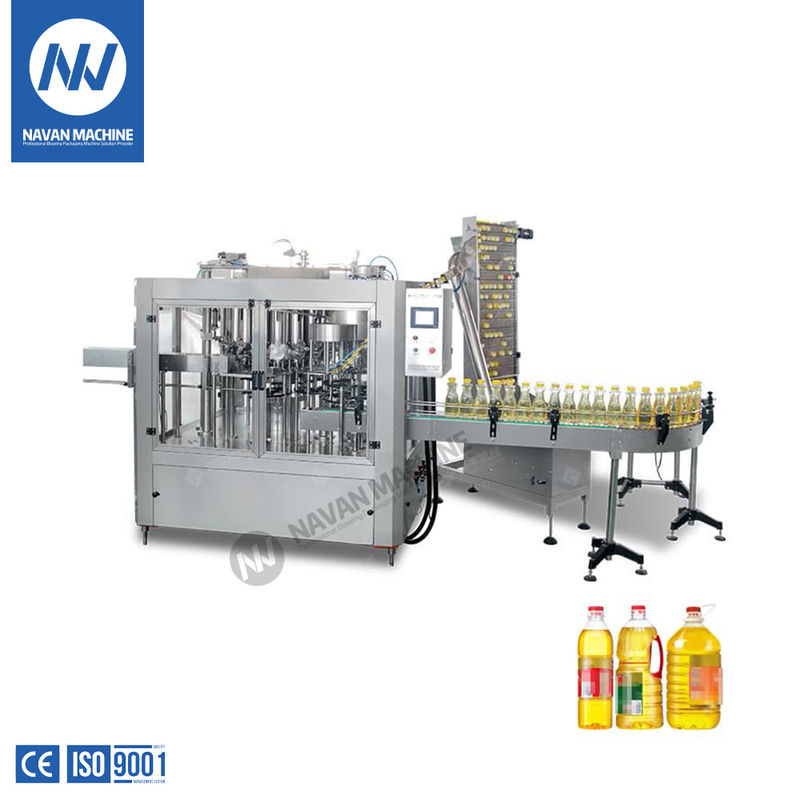

Automatic 100-15000ml Liquid Filler 500-15000BPH Edible Oil Filling Machine
Photoelectric switch, touch screen and high quality stainless steel, plastic parts. This machine is good quality. System operation, convenient adjustment, friendly man machine interface, the use of advanced automatic control technology, in order to achieve a high precision liquid filling.
Product Paramenters:
| Stable filling , no foaming, no dripping | |||||
| Filling precision:±2g(500g) | |||||
| Voltage:380/220V 50HZ (Or customized) | |||||
| Compressed air :0.6-0.8MPA | |||||
| Linear type | |||||
| Model | PF02 | PF-4/6 | PF-8/10 | PF-12 | |
| Filling head | 2pcs | 4-6pcs | 8-10 pcs | 12pcs | |
| Filling range: | 100-1000ML, 500ML-5L,5-30L | ||||
| Capacity(5L/bottle) | 500BPH | 600-800BPH | 1800-2500BPH | 3000-3500BPH | |

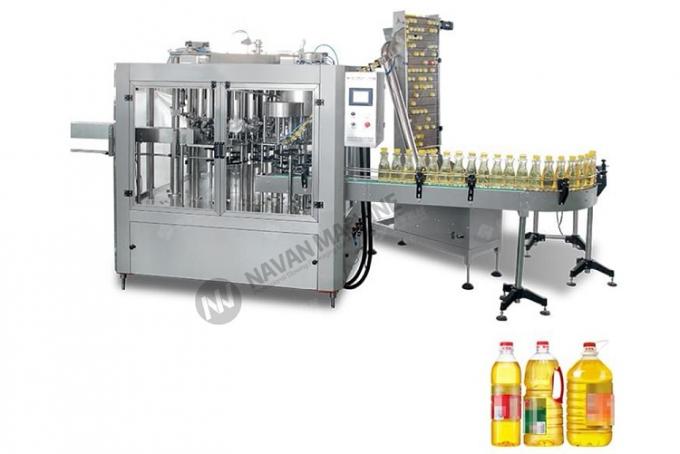

| Rotray type | |||||
| Model | NPF8-4 | NPF12-5 | NPF18-6 | NPF24-8 | NPF32-10 |
| Filling Heads | 8 | 12 | 18 | 24 | 32 |
| Capping Heads | 4 | 5 | 6 | 8 | 10 |
| Filling Volume | 200ml-1000ml, 500ml-2000ml | ||||
| Capacity(B/H) | 2800 | 3500 | 7000 | 10000 | 15000 |

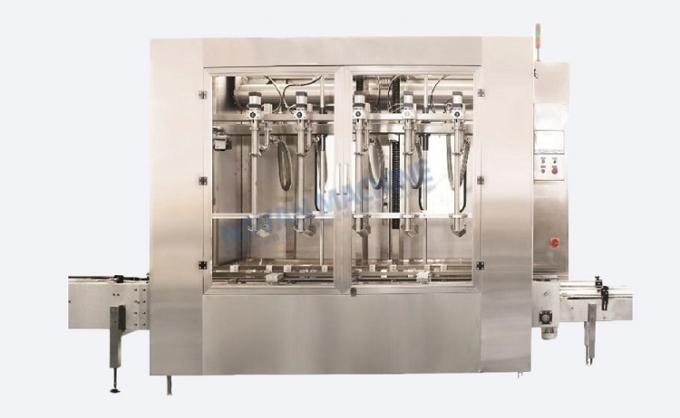

Automatic Liquid Filler (Rotary Lobe Pump)
1. Rotary kobe pump( contact parts h SUS316 or Teflon).
2. Stainless steel SUS 304 filling nozzle.
3. Shut nozzle with pneumatic valve to prevent dropping.
4. Each filling pump driven by a speed Servo motor.
5. Dipping type filling nozzle, no spilling of liquid onto clean bottles and conveyor.
6. Filling nozzle holding device and uplift assembly with a huge sole- noid valve.

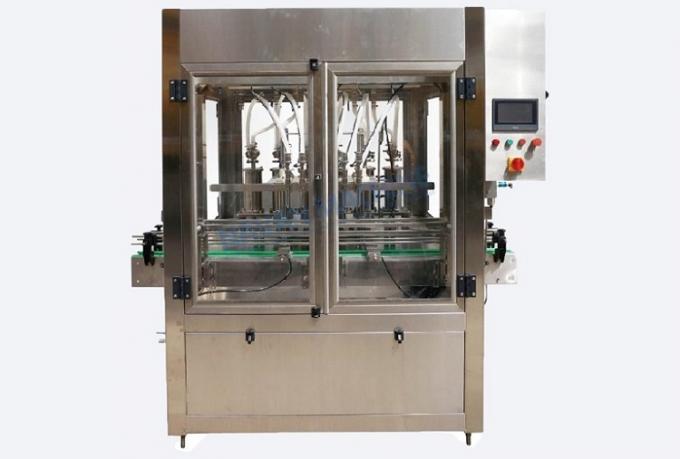

Automatic Piston Filling Machine
Intellectual High Viscosity Filling Machine is the new-generation improved volumet- ric filling machine The whole machine uses the in-line structure and it is driven by the servo motor. filling principle can reaize the high precision of filling It is by the PLC, human interface and easy operation. The machine is equipped with electric scale weight which makes the volume adjustment easier.

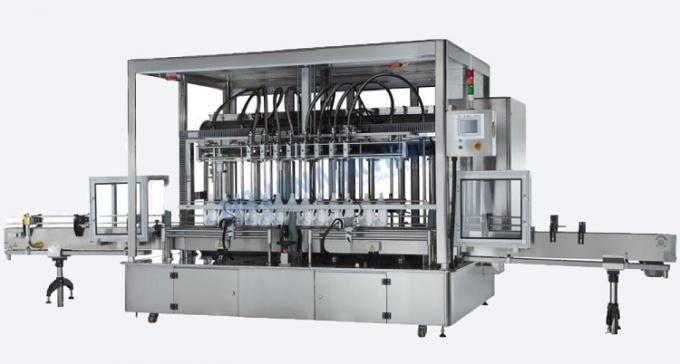

Automatic Weighing Filling Machine
This type machine is used for 10kg -30kg liquid filling. It can finish a series of operations automatically, such as bottle inlet, weight filling, bottle outlet. Especially for edible oil lubrication. it is widely used in foodstuff, pharmacy, cosmetic and chemical industries.
Feature:
1. Adopts PLC, touch screen control panel, convenient to adjust.
2. Each filling head has the weigh and feedback system, Each filling head can be regulated.
3. Photoelectric sensor, approximate switch and other electric elements are the international famous brand No contain- er no filling. The main host can trigger the alarm if there is any container blocked.
4. Submerged filling makes it possible to reduce form. It is suitable for various kinds of products.
5. The whole machine meets GMP standard. It is easy to disassemble clean and maintain , and the parts which. cont with the filling products are made of high quality stainless steel. The whole machine is safe, environmental , sanitary. adapts to various kinds of working places.
