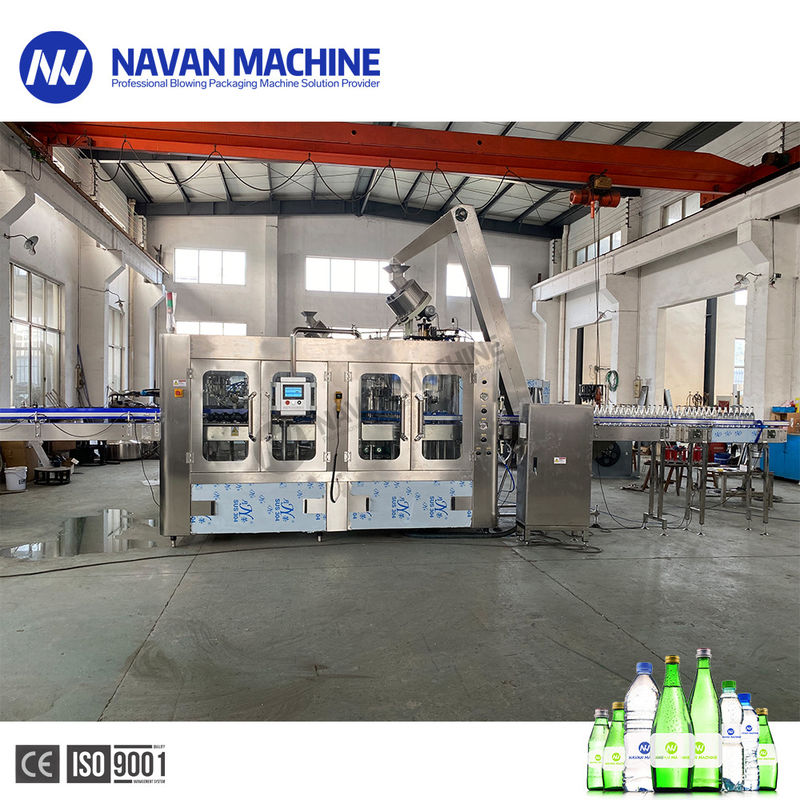

6000-8000BPH Glass Bottle Carbonated Sparkling Drink 3-In-1 Filling Machine
The NPXGF washing filling capping 3-in-1 unit makes use of combined transmission by open gear and gearbox, and adopts frequency conversion stepless speed control, extending the speed modulating scope.The machine has an automatic lubricating device so that the lubrication points can be automatically lubricated regularly in time. Also, our NPXGF washing filling capping 3-in-1 unit has high transmission efficiency, low noise and long life.
Product Paramenters:
Automatic Glass Bottle Carbonated Drink Filling Machine for Cola,Soda Water etc
| Main Technical parameters | |
| Model | NPXGF24-24-8 |
| Produciton capacity(330ml) | 6000-8000 |
| Heads of Rinsing Filling & Capping | 24-24-8 |
| Suitable bottle height (mm) | 160-340 |
| Suitable bottle diameter (mm) | 50 ~ 100 |
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 |
| Filling way | Isobaric filling (twice vacuumized ) |
| Filling temperature (℃) | 0~5 |
| Filling pressure(MPa) | 0.15~ 0.5 |
| Main motor power(kw) | 4 |
| Total power(kw) | 4.18 |
| Overall dimensions(mm) | 3280x2420x3200 |
| Weight(kg) | 5000 |
| Main Technical parameters | ||||||
|---|---|---|---|---|---|---|
| Model | NPXGF14-12-5 | NPXGF18-18-6 | NPXGF24-24-8 | NPXGF32-32-8 | NPXGF40-40-10 | NPXGF50-50-12 |
| Produciton capacity(330ml) | 1000-1500 | 3000-5000 | 6000-8000 | 8000-10000 | 12000-15000 | 15000-18000 |
| Heads of Rinsing Filling & Capping | 14-12-5 | 18-18-6 | 24-24-6 | 32-32-8 | 40-40-10 | 50-50-12 |
| Suitable bottle height (mm) | 160-340 | |||||
| Suitable bottle diameter (mm) | 50 ~ 100 | |||||
| Rinsing Water pressure (MPa) | 0.25 ~ 0.3 | |||||
| Filling way | Isobaric filling (twice vacuumized ) | |||||
| Filling temperature (℃) | 0~5 | |||||
| Filling pressure (MPa) | 0.15~ 0.5 | |||||
| Main motor power(kw) | 2.2 | 3 | 4 | 7.5 | 7.5 | 11 |
| Total power(kw) | 2.75 | 3.18 | 4.18 | 7.68 | 7.68 | 11.5 |
| Overall dimensions (mm) | 2700x1500x2300 | 3012x2012x3260 | 3280x2420x3200 | 4430x2880x3200 | 4650x3200x3200 | 4987x3846x3200 |
| Weight(kg) | 2800 | 3800 | 5000 | 6800 | 8800 | 11000 |
Details of the Machine
- Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Glass Bottle Washing.
Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.
- Glass Bottle Filling
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable ,Defective rate ≤0.2% .
