Juice Filling Machine
>
|
|
| Place of Origin | China |
| Brand Name | NAVAN MACHINE |
| Certification | CE,ISO |
| Model Number | CGFR24-24-8 |
Product Description

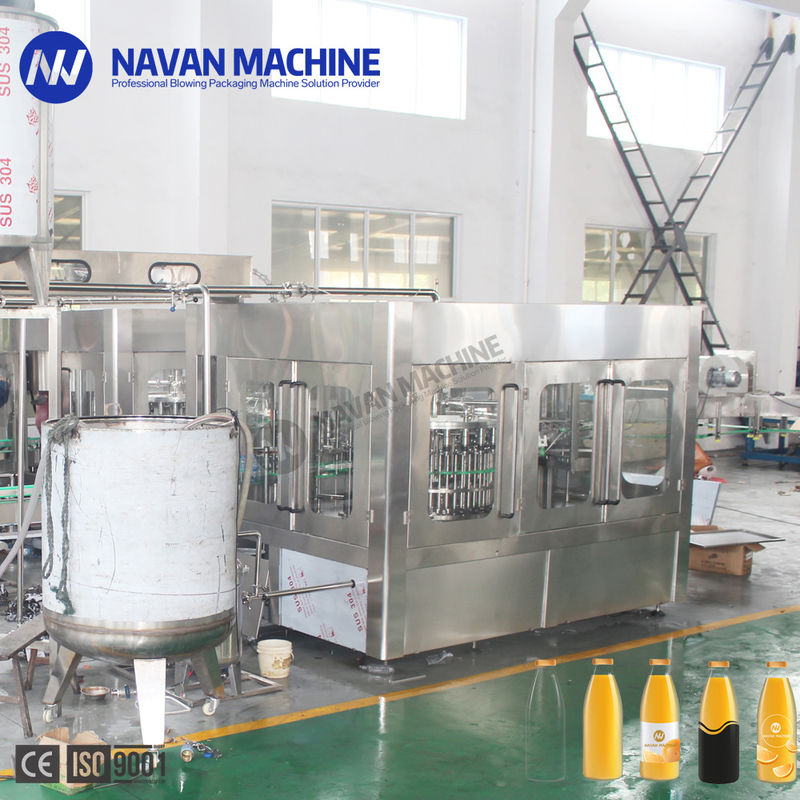

3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main features
Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15 deg; Angle ensures to wash all side of the bottle, and can save the water.
Product Paramenters:
Product Description
Rinser Station:
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15 deg; Angle ensures to wash all side of the bottle, and can save the water.
Filler station:
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.
Capper Station:
Screw capping machine is most precision part in the 3-in-1 machine, it has a big influence to the goods stability and defective rate.
After-sales service:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only
one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Company description
Our company's is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment.We have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 6000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
