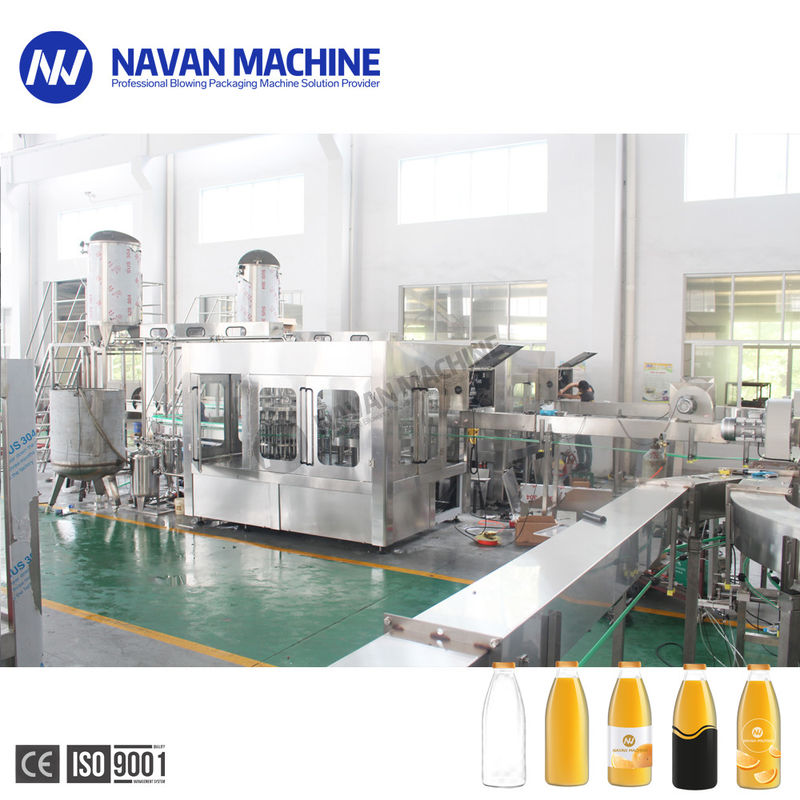

PET Automatic Fruit Juice Beverage Hot Filling Machine Washing Filling Capping Line

Glass Bottle  Automatic Fruit Juice Beverage Hot Filling Machine Washing Filling Capping Line

The juice enters the filling machine to start filling after reaching the technological requirements through the UHT (Ultra High Temperature Instantaneous Sterilization) system. The function of the backflow device is to ensure that the filling volume of each bottle is on a uniform level. If there is a liquid level that exceeds the specified level, the backflow pump will start vacuuming and extract the excess liquid into the front UHT sterilization tank for high-temperature sterilization,then back to the filling link.

Product Paramenters:

Product Description

Rinser Station:

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

Filler station:

Capper Station:

Rotary bottle washer

Principle:
